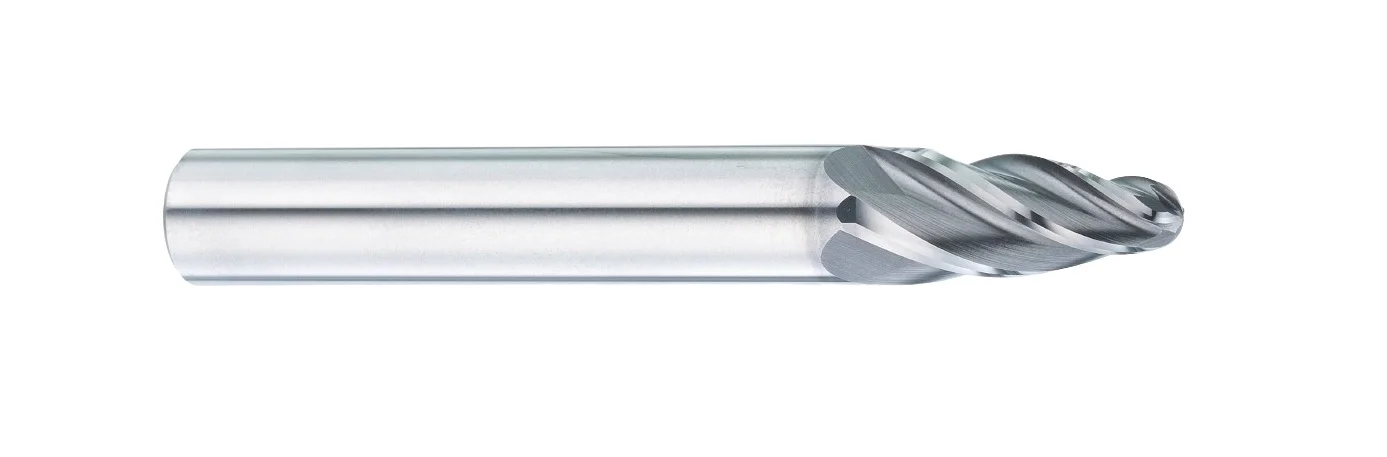

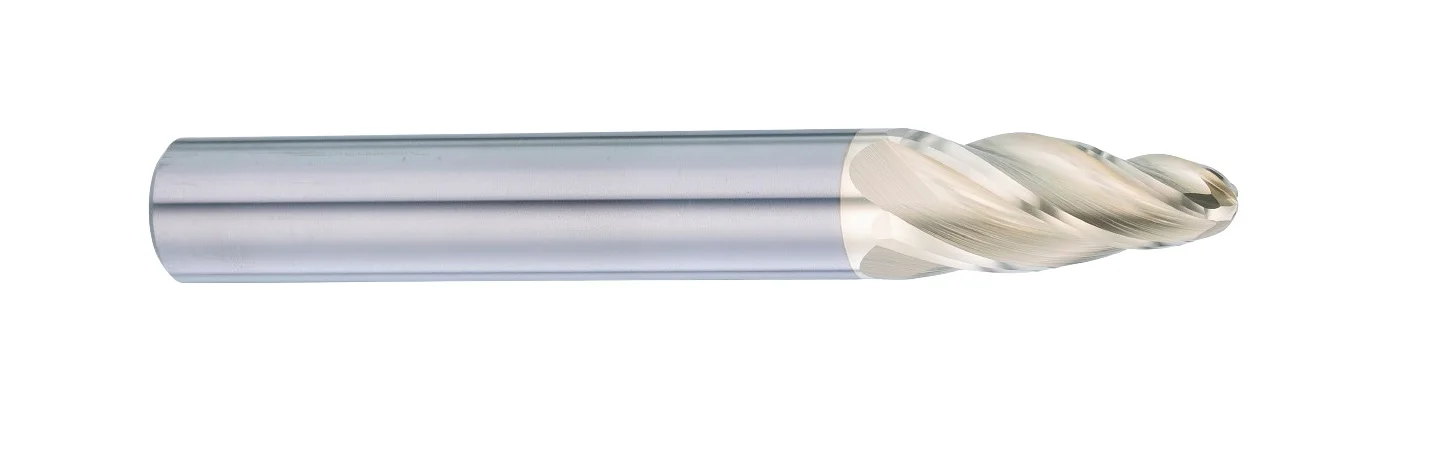

Q136FX / Q136SX 5-Axis End Mills (Oval Form)
㎜
ASIA
- Specialized contours that significantly reduce cycle times and greatly improve surface finish.
- Oval form with two tangential radii and small angles for machining in tight spaces.
- 4-flute geometry designed for semi-finishing and finishing of stainless steel and high temperature alloys.
- AlCrN coating has high hardness and lubricity, suitable for cutting steel, stainless steel, and other metal materials.
- AlTiXZrN coating has high lubricity and anti-stickiness, suitable for cutting nickel alloy, high temperature alloy, stainless steel, titanium alloy and other difficultto-cut materials.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
被削材
| P | H | M | S | |||
|---|---|---|---|---|---|---|
| GR1 | GR5 | GR6 | GR8 | GR15 | GR16 | GR17 |
| 炭素鋼(カーボンスチール) | 焼き入れ鋼 38-48HRC | 焼き入れ鋼 48-56HRC | ステンレス鋼 | チタン合金 | ニッケル | 耐熱合金 |
製品仕様
| Code No. | R | Lc | L | d | z |
|---|---|---|---|---|---|
| ±0.01 | mm | mm | h6 | ||
| Q136FX | 2.5 | 22.03 | 72 | 10 | 4 |
| 3 | 26.43 | 75 | 12 | 4 | |
| 4 | 35.24 | 100 | 16 | 4 | |
| 5 | 44.05 | 100 | 20 | 4 | |
| Q136SX | 2.5 | 22.03 | 72 | 10 | 4 |
| 3 | 26.43 | 75 | 12 | 4 | |
| 4 | 35.24 | 100 | 16 | 4 | |
| 5 | 44.05 | 100 | 20 | 4 |
