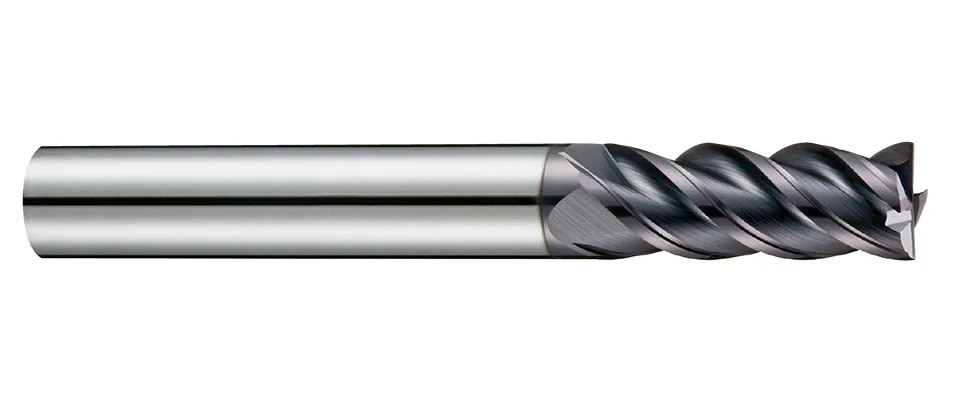

E144X Multipurpose End Mills
METRIC
ASIA
- Multipurpose End Mills for Finishing Process- 4 Flutes
- Effectively decrease the vibration by various helix geometry and unequal flutes designs.
- Big chip breaker is designed to reach high removal rate for various work materials.
- Obviously improve tool life with Nano multilayer coating AlTiCrN.
- Bigger helix design is for better finishing machining.
- Suitable for different kinds of materials in finishing.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | S | |||||
---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
Dc | Lc | L | d | z |
---|---|---|---|---|
0-0.02 | mm | mm | h6 | |
1 | 3 | 50 | 4 | 4 |
1.5 | 5 | 50 | 4 | 4 |
2 | 6 | 50 | 4 | 4 |
2.5 | 8 | 50 | 4 | 4 |
3A | 8 | 50 | 4 | 4 |
4A | 11 | 50 | 4 | 4 |
3 | 8 | 50 | 6 | 4 |
3.5 | 10 | 50 | 6 | 4 |
4 | 11 | 50 | 6 | 4 |
4.5 | 11 | 50 | 6 | 4 |
5 | 13 | 50 | 6 | 4 |
5.5 | 13 | 50 | 6 | 4 |
6 | 16 | 50 | 6 | 4 |
7 | 20 | 60 | 8 | 4 |
8 | 20 | 60 | 8 | 4 |
9 | 25 | 72 | 10 | 4 |
10 | 25 | 72 | 10 | 4 |
11 | 30 | 75 | 12 | 4 |
12 | 30 | 75 | 12 | 4 |
14 | 40 | 100 | 16 | 4 |
16 | 45 | 100 | 16 | 4 |
20 | 50 | 110 | 20 | 4 |
