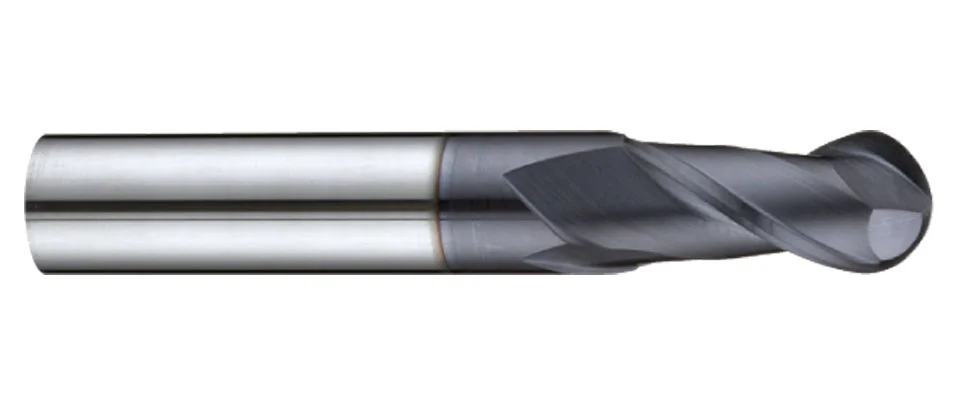

B222X Ball Nose End Mills

METRIC ASIA
  • Ball Nose End Mills- 2 Flutes
  • Suitable to work on various kind of materials.
  • Nano multilayer coating enable to enhance wear resistance.
  • S shape ball nose geometry design enable to keep cutting stable.
  • Suitable to work on material below HRC48.
  • MG carbide
  • 塗層種類2
  • 螺旋角 2-2
  • 刀具刃數1-5
  • N 10度 - 3頁
  • 切削邊緣2
  • 機械加工方式 4-2
  • 機械加工方式 4-3
  • 機械加工方式 4-4

Steel < 48HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
R
Lc
L
d
z
Dc R Lc L d z
0 -0.02 ±0.01 mm mm h6
0.1 0.05R 0.2 50 4 2
0.2 0.1R 0.4 50 4 2
0.3 0.15R 0.6 50 4 2
0.4 0.2R 0.8 50 4 2
0.5 0.25R 1 50 4 2
0.6 0.3R 1.2 50 4 2
0.7 0.35R 1.4 50 4 2
0.8 0.4R 1.6 50 4 2
0.9 0.45R 1.8 50 4 2
1 0.5R 2 50 4 2
1.2 0.6R 2.4 50 4 2
1.4 0.7R 2.8 50 4 2
1.5 0.75R 3 50 4 2
1.6 0.8R 3.2 50 4 2
1.8 0.9R 3.6 50 4 2
2 1R 4 50 4 2
2.5 1.25R 5 50 4 2
3A 1.5R 6 50 4 2
4A 2R 8 50 4 2
3 1.5R 6 50 6 2
3.5 1.75R 8 50 6 2
4 2R 8 50 6 2
4.5 2.25R 10 50 6 2
5 2.5R 10 50 6 2
5.5 2.75R 12 50 6 2
6 3R 12 50 6 2
6.5 3.25R 14 60 8 2
7 3.5R 14 60 8 2
7.5 3.75R 14 60 8 2
8 4R 14 60 8 2
8.5 4.25R 18 72 10 2
9 4.5R 18 72 10 2
9.5 4.75R 18 72 10 2
10 5R 18 72 10 2
11 5.5R 22 75 12 2
12 6R 22 75 12 2
13 6.5R 26 90 16 2
14 7R 26 90 16 2
15 7.5R 30 90 16 2
16 8R 30 100 16 2
17 8.5R 34 100 20 2
18 9R 34 100 20 2
19 9.5R 38 100 20 2
20 10R 38 100 20 2
