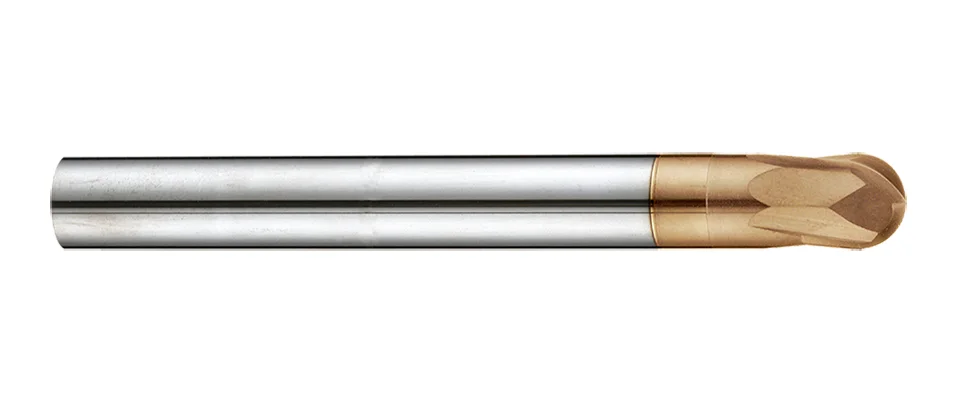

B261TX Ball Nose End Mills
METRIC
ASIA
- Ball Nose End Mills with Standard & Long Length- 2 Flutes
- Using SMG carbide material and Nano multilayer coating enable to enhance lubrication and wear resistance.
- S shape ball nose geometry with small cutting edge design enable to keep longer tool life.
- Suitable to work on high hardness and high precision mold process.
Hardened Steel 40-70HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| H | ||
|---|---|---|
| GR5 | GR6 | GR7 |
| 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel |
Product Specification
| Dc | R | Lc | L | d | L1 | z |
|---|---|---|---|---|---|---|
| 0 -0.02 | ±0.005 | mm | mm | h6 | mm | |
| 1 | 0.5R | 1 | 50 | 4 | 2 | 2 |
| 1.5 | 0.75R | 1.5 | 50 | 4 | 3 | 2 |
| 2 | 1R | 2 | 60 | 6 | 4 | 2 |
| 3 | 1.5R | 3 | 70 | 6 | 6 | 2 |
| 4 | 2R | 4 | 70 | 6 | 8 | 2 |
| 5 | 2.5R | 5 | 80 | 6 | 10 | 2 |
| 6 | 3R | 6 | 80 | 6 | 12 | 2 |
| 8 | 4R | 8 | 100 | 8 | 16 | 2 |
| 10 | 5R | 10 | 100 | 10 | 20 | 2 |
| 12 | 6R | 12 | 110 | 12 | 24 | 2 |
