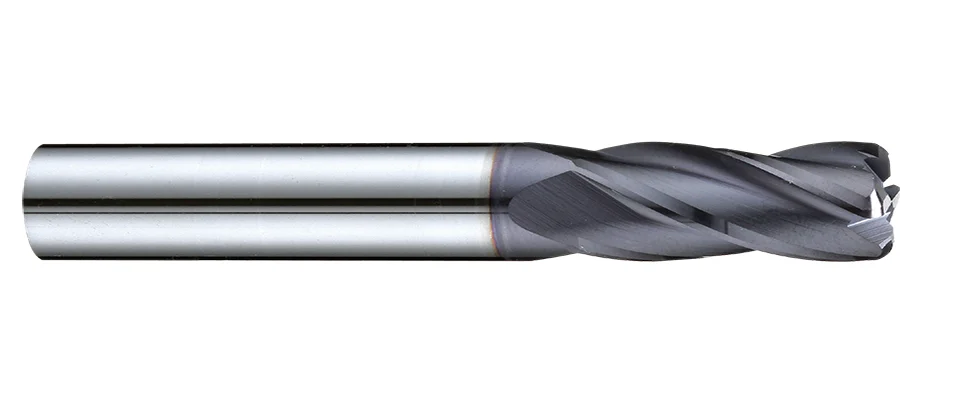

B256X End Mills With Corner Radius

METRIC ASIA
  • End Mills with Corner Radius- 4 Flutes
  • Widely used in roughing and finishing 3D curved frame.
  • Coating with AlTiN to have perfect wear resistance.
  • Suitable for various steel materials up to HRC56.
  • UMG carbide
  • 塗層種類2
  • 螺旋角 2-2
  • Blade4 New
  • Nr5
  • 切削邊緣4
  • 7
  • 2
  • 6
  • 5
Inquiry Download
PREV NEXT

Steel < 56HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR6 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
R
Lc
L
d
z
Dc R Lc L d z
0 -0.02 ±0.01 mm mm h6
1 R0.1 3 50 4 4
1 R0.2 3 50 4 4
1 R0.3 3 50 4 4
1.5 R0.1 5 50 4 4
1.5 R0.2 5 50 4 4
1.5 R0.3 5 50 4 4
1.5 R0.5 5 50 4 4
2 R0.1 6 50 4 4
2 R0.2 6 50 4 4
2 R0.3 6 50 4 4
2 R0.5 6 50 4 4
2.5 R0.1 8 50 4 4
2.5 R0.2 8 50 4 4
2.5 R0.3 8 50 4 4
2.5 R0.5 8 50 4 4
3A R0.1 8 50 4 4
3A R0.2 8 50 4 4
3A R0.3 8 50 4 4
3A R0.5 8 50 4 4
4A R0.1 11 50 4 4
4A R0.2 11 50 4 4
4A R0.3 11 50 4 4
4A R0.5 11 50 4 4
4A R1 11 50 4 4
3 R0.1 8 50 6 4
3 R0.2 8 50 6 4
3 R0.3 8 50 6 4
3 R0.5 8 50 6 4
4 R0.1 11 50 6 4
4 R0.2 11 50 6 4
4 R0.3 11 50 6 4
4 R0.5 11 50 6 4
4 R1 11 50 6 4
5 R0.2 13 50 6 4
5 R0.3 13 50 6 4
5 R0.5 13 50 6 4
5 R1 13 50 6 4
6 R0.2 16 50 6 4
6 R0.3 16 50 6 4
6 R0.5 16 50 6 4
6 R1 16 50 6 4
6 R1.5 16 50 6 4
6 R2 16 50 6 4
8 R0.2 20 60 8 4
8 R0.3 20 60 8 4
8 R0.5 20 60 8 4
8 R1 20 60 8 4
8 R1.5 20 60 8 4
8 R2 20 60 8 4
8 R3 20 60 8 4
10 R0.2 22 72 10 4
10 R0.3 22 72 10 4
10 R0.5 22 72 10 4
10 R1 22 72 10 4
10 R1.5 22 72 10 4
10 R2 22 72 10 4
10 R3 22 72 10 4
12 R0.2 26 75 12 4
12 R0.3 26 75 12 4
12 R0.5 26 75 12 4
12 R1 26 75 12 4
12 R1.5 26 75 12 4
12 R2 26 75 12 4
12 R3 26 75 12 4
16 R0.5 38 100 16 4
16 R1 38 100 16 4
16 R1.5 38 100 16 4
16 R2 38 100 16 4
16 R3 38 100 16 4
16 R4 38 100 16 4
20 R0.5 38 100 20 4
20 R1 38 100 20 4
20 R1.5 38 100 20 4
20 R2 38 100 20 4
20 R3 38 100 20 4
20 R4 38 100 20 4
20 R5 38 100 20 4
