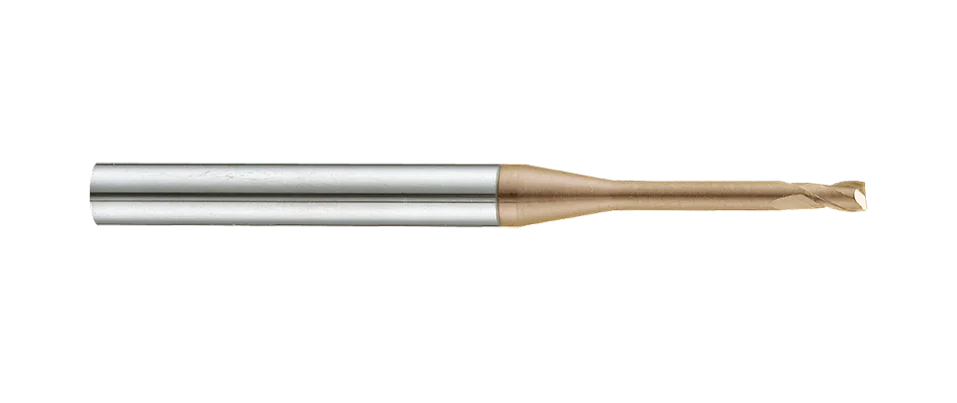

F691TX End Mills For Rib Processing

METRIC ASIA
  • End Mills For Rib Processing with Sharp Corner Edge- 2 Flutes Square
  • Widely used in high precition mold and deep machining angle clean with long neck.
  • Perform excellent lubrication effect and high wear resistance with Nano multilayer coating.
  • Designed with sharp corner edge can accurately work on the right angle.
  • Available with complete size range.
  • Workable for various steel materials and copper electrode materials.
  • 刀具材料3
  • 塗層種類4
  • 螺旋角 2-2
  • 刀具刃數1-1
  • Nr5
  • 90
  • 機械加工方式 1-5
  • 機械加工方式 3-1
  • 機械加工方式 3-2
Inquiry Download
PREV NEXT

Steel < 62HRC

P H M K N S

Work Material

P H K N
GR1 GR2 GR3 GR4 GR5 GR6 GR7 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel 56~68HRC Hardened Steel Cast Iron Copper

Product Specification

Product Filter
Dc
Lc
L
d
L1
z
Dc Lc L d L1 D1 z
0 -0.02 mm mm h5 mm mm
0.5 0.7 50 4 2 0.45 2
0.5 0.7 50 4 4 0.45 2
0.5 0.7 50 4 6 0.45 2
0.6 0.9 50 4 2 0.55 2
0.6 0.9 50 4 4 0.55 2
0.6 0.9 50 4 6 0.55 2
0.7 1 50 4 2 0.65 2
0.7 1 50 4 4 0.65 2
0.7 1 50 4 6 0.65 2
0.8 1.2 50 4 4 0.75 2
0.8 1.2 50 4 6 0.75 2
0.8 1.2 50 4 8 0.75 2
1 1.5 50 4 6 0.95 2
1 1.5 50 4 8 0.95 2
1 1.5 50 4 10 0.95 2
1 1.5 50 4 12 0.95 2
1.2 1.8 50 4 6 1.15 2
1.2 1.8 50 4 10 1.15 2
1.5 2.3 50 4 6 1.45 2
1.5 2.3 50 4 8 1.45 2
1.5 2.3 50 4 10 1.45 2
1.5 2.3 50 4 12 1.45 2
1.5 2.3 50 4 14 1.45 2
1.5 2.3 50 4 16 1.45 2
1.5 2.3 60 4 20 1.45 2
2 3 50 4 6 1.95 2
2 3 50 4 8 1.95 2
2 3 50 4 10 1.95 2
2 3 50 4 12 1.95 2
2 3 50 4 14 1.95 2
2 3 50 4 16 1.95 2
2 3 60 4 20 1.95 2
2.5 3.7 50 4 8 2.4 2
2.5 3.7 50 4 10 2.4 2
2.5 3.7 50 4 12 2.4 2
2.5 3.7 60 4 16 2.4 2
3 4.5 50 6 12 2.85 2
3 4.5 60 6 14 2.85 2
3 4.5 60 6 16 2.85 2
3 4.5 60 6 18 2.85 2
3 4.5 60 6 20 2.85 2
3 4.5 70 6 25 2.85 2
