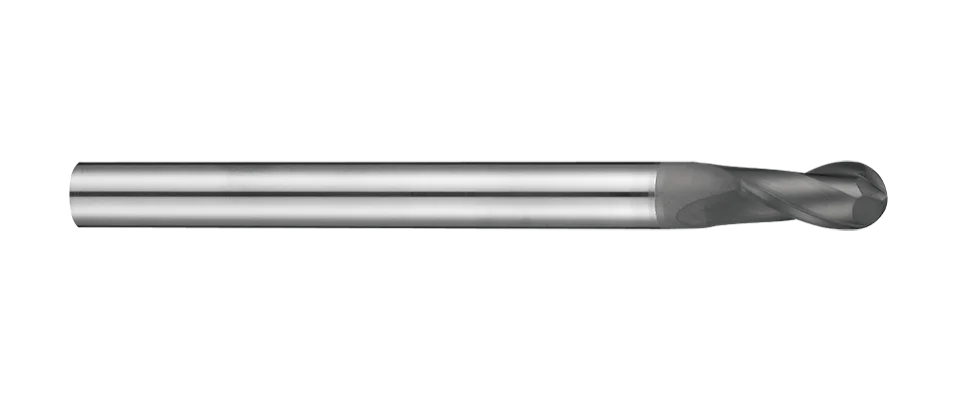

G234DC Ball Nose End Mills For Graphite
METRIC
ASIA
- Ball Nose End Mills for Graphite- Long Length
- Apply with high hardness diamond coating and have a good wear resistance.
- Keep lower wear condition level in high speed processing.
- Application for curved surface and round groove processing of Graphite.
Graphite
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR14 |
| Graphite |
Product Specification
| Dc | R | Lc | L | d | z |
|---|---|---|---|---|---|
| ±0.03 | ±0.015 | mm | mm | h6 | |
| 4 | 2R | 8 | 80 | 4 | 2 |
| 6 | 3R | 12 | 80 | 6 | 2 |
| 8 | 4R | 16 | 100 | 8 | 2 |
| 10 | 5R | 20 | 100 | 10 | 2 |
| 12 | 6R | 24 | 110 | 12 | 2 |
