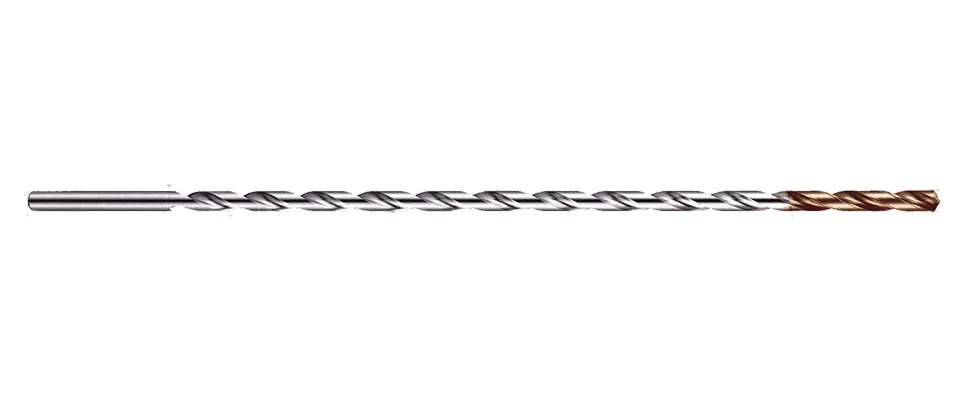

D423TX-30 Oil-Feed High Performance Drills
METRIC
ASIA
- JIS 30XD Drills with Oil-Feed
- 135° S-shape drill tip design to reduce axial force.
- Design with groove shape to provide higher chip removal rates.
- Good wear resistance and lubrication with Nano multilayer coating.
- Oil-feed design could reduce temperature effectively and increase chip removal rates during cutting process.
- Application for drilling with Steels which under HRC48, Cast Iron…etc.
- Suitable for drilling with 30XD depth.
Steel < 52HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | |||||
|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d |
|---|---|---|---|
| h7 | mm | mm | h6 |
| 3 | 105 | 153 | 3 |
| 3.5 | 123 | 171 | 4 |
| 4 | 140 | 188 | 4 |
| 4.5 | 158 | 208 | 5 |
| 5 | 175 | 225 | 5 |
| 5.5 | 193 | 245 | 6 |
| 6 | 210 | 262 | 6 |
| 6.5 | 228 | 281 | 7 |
| 7 | 245 | 298 | 7 |
| 7.5 | 263 | 317 | 8 |
| 8 | 280 | 334 | 8 |
| 10 | 350 | 406 | 10 |
