D914
D914

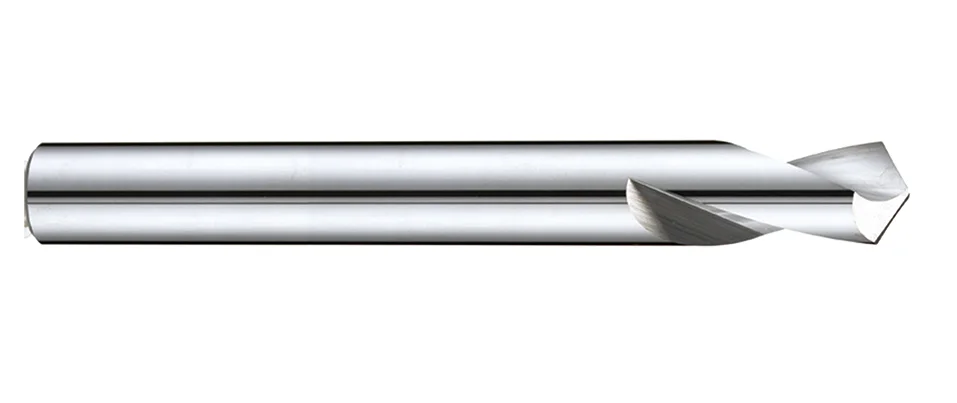

D914 NC Spot Drills 120°

METRIC DIN
  • Improved strength design for cutting different steels below 48HRC, cast iron, aluminium and copper.
  • Application for drill positioning and chamfering.
  • VHM-carbide
  • uncoated bright
  • 螺旋角D
  • 刀具刃數1-6
  • 120
  • steel-cast-iron-AL-copper
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H K N S
GR1 GR2 GR3 GR4 GR5 GR9 GR10 GR11 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Cast Iron Aluminium Copper Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L
d
Dc Lc L d
h6 mm mm h6
6 20 100 6
8 25 125 8
10 25 150 10
12 30 150 12
16 35 150 16
20 40 150 20
