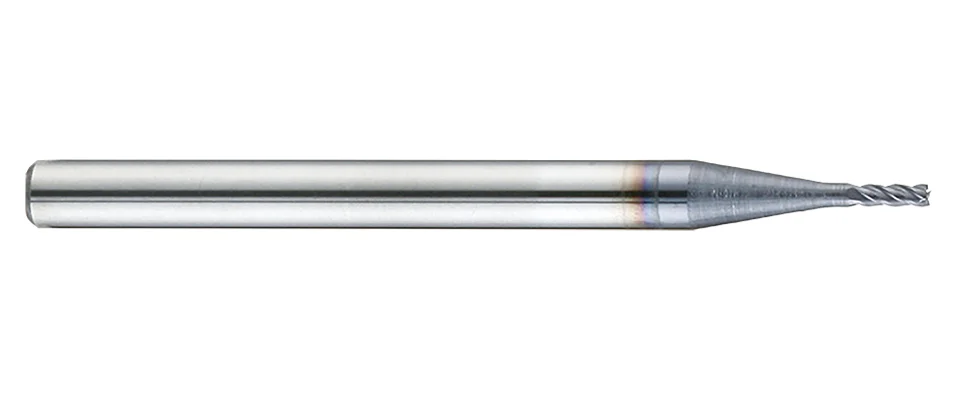

E104HX Finishing End Mills
METRIC
DIN
- Small diameter series with specification in step of 0.1mm.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- Suitable for cutting different steels below 48HRC as well as cast iron.
- Various application for general cutting.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | |||
---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
Dc | Lc | L | d | z |
---|---|---|---|---|
0 -0.02 | mm | mm | h5 | |
1 | 3 | 38 | 3 | 4 |
1.1 | 3 | 38 | 3 | 4 |
1.2 | 4 | 38 | 3 | 4 |
1.3 | 4 | 38 | 3 | 4 |
1.4 | 4 | 38 | 3 | 4 |
1.5 | 5 | 38 | 3 | 4 |
1.6 | 5 | 38 | 3 | 4 |
1.7 | 5 | 38 | 3 | 4 |
1.8 | 5 | 38 | 3 | 4 |
1.9 | 5 | 38 | 3 | 4 |
2 | 6 | 38 | 3 | 4 |
2.1 | 6 | 38 | 3 | 4 |
2.2 | 6 | 38 | 3 | 4 |
2.3 | 6 | 38 | 3 | 4 |
2.4 | 8 | 38 | 3 | 4 |
2.5 | 8 | 38 | 3 | 4 |
2.6 | 8 | 38 | 3 | 4 |
2.7 | 8 | 38 | 3 | 4 |
2.8 | 8 | 38 | 3 | 4 |
2.9 | 8 | 38 | 3 | 4 |
3 | 8 | 38 | 3 | 4 |
