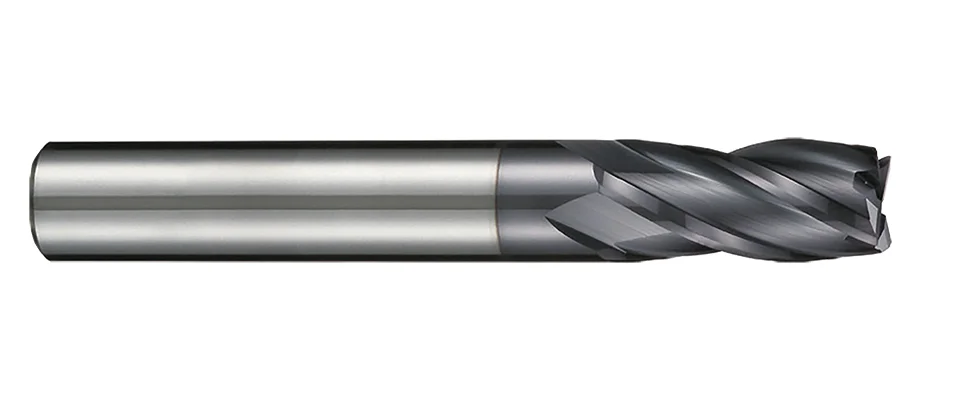

F507HX Finishing End Mills
METRIC
DIN
- With MG carbide material is good for cutting materials <48HRC.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- With sharp cutting edge is good for cutting different steels below 48HRC as well as cast iron.
- Various application for finishing cutting.
- ※Tool with side lock is available.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | |||
|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
| Dc | Lc | L | d | 45゜ | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h5 | mm | |
| 3 | 8 | 57 | 6 | 0.03 | 4 |
| 4 | 11 | 57 | 6 | 0.04 | 4 |
| 5 | 13 | 57 | 6 | 0.05 | 4 |
| 6 | 13 | 57 | 6 | 0.06 | 4 |
| 8 | 19 | 63 | 8 | 0.08 | 4 |
| 10 | 22 | 72 | 10 | 0.1 | 4 |
| 12 | 26 | 83 | 12 | 0.12 | 4 |
| 14 | 26 | 83 | 14 | 0.14 | 4 |
| 16 | 32 | 92 | 16 | 0.16 | 4 |
| 18 | 32 | 92 | 18 | 0.18 | 4 |
| 20 | 38 | 104 | 20 | 0.2 | 4 |
