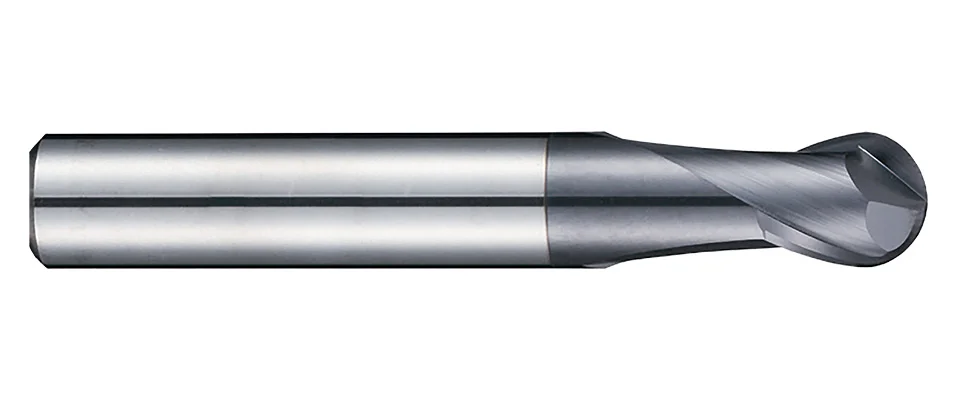

F520HX Ball Nose End Mills
METRIC
DIN
- Designed with S-style ball nose geometry.
- Reduce surface cutting resistance.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- Suitable for cutting different steels below 48HRC as well as cast iron.
- Application for finishing profile cutting.
- ※Tool with side lock is available.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | |||
---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
Dc | R | Lc | L | d | z |
---|---|---|---|---|---|
0 -0.02 | ±0.01 | mm | mm | h5 | |
2 | 1R | 3 | 50 | 6 | 2 |
3 | 1.5R | 4 | 50 | 6 | 2 |
4 | 2R | 5 | 54 | 6 | 2 |
5 | 2.5R | 6 | 54 | 6 | 2 |
6 | 3R | 7 | 54 | 6 | 2 |
8 | 4R | 9 | 58 | 8 | 2 |
10 | 5R | 11 | 66 | 10 | 2 |
12 | 6R | 12 | 73 | 12 | 2 |
14 | 7R | 14 | 75 | 14 | 2 |
16 | 8R | 16 | 82 | 16 | 2 |
18 | 9R | 18 | 84 | 18 | 2 |
20 | 10R | 20 | 92 | 20 | 2 |
