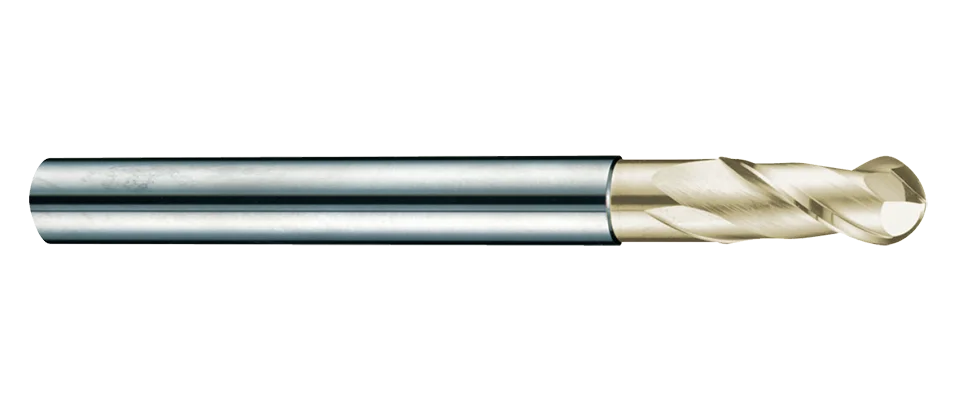

F620ZX Ball Nose End Mills For Aluminium
METRIC
DIN
- 40° helix with round cutting edge and mirror sharp grinding on side cutting edge.
- Various applications on Aluminium for curved profile milling.
- Adopting ZrN coating without AlTi in the formula would prevent from chemical affinity with Alu metal and enhance tool life by decreasing friction and gaining better surface hardness and smoothness.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Dc | R | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|---|
| 0 -0.02 | ±0.005 | mm | mm | mm | mm | h5 | |
| 3 | 1.5R | 6 | 70 | 6 | 9 | 2.8 | 2 |
| 4 | 2R | 8 | 70 | 6 | 12 | 3.7 | 2 |
| 5 | 2.5R | 10 | 80 | 6 | 15 | 4.6 | 2 |
| 6 | 3R | 12 | 80 | 6 | 20 | 5.5 | 2 |
| 8 | 4R | 16 | 100 | 8 | 26 | 7.4 | 2 |
| 10 | 5R | 20 | 100 | 10 | 31 | 9.2 | 2 |
| 12 | 6R | 24 | 110 | 12 | 37 | 11 | 2 |
