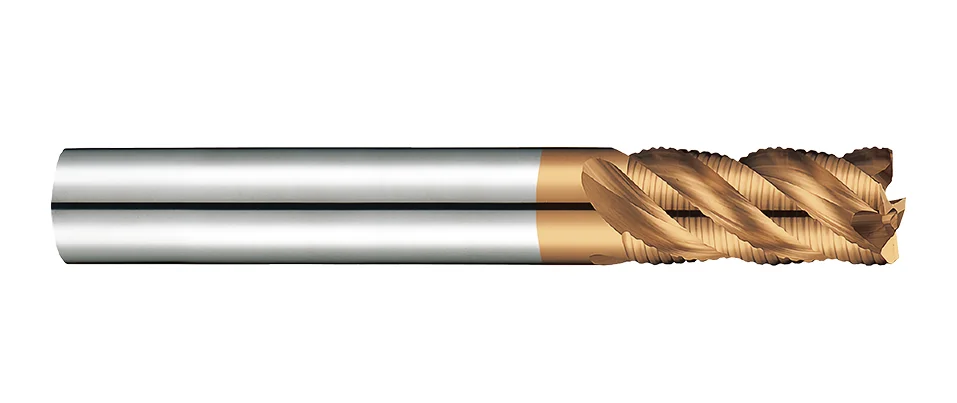

F638TX Roughing End Mills
METRIC
DIN
- Fine tooth staggered chip breaker design on cutting flutes are good for chip breaking.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- Suitable for cutting different steel below 56HRC as well as cast iron.
- Application for roughing cutting process.
- ※Tool with side lock is available.
Steel < 56HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR6 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | 45゜ | z |
|---|---|---|---|---|---|
| h10 | mm | mm | h5 | mm | T |
| 3 | 8 | 57 | 6 | 0.4 | 4 |
| 4 | 11 | 57 | 6 | 0.4 | 4 |
| 5 | 13 | 57 | 6 | 0.4 | 4 |
| 6 | 13 | 57 | 6 | 0.4 | 4 |
| 8 | 19 | 63 | 8 | 0.4 | 4 |
| 10 | 22 | 72 | 10 | 0.5 | 4 |
| 12 | 26 | 83 | 12 | 0.5 | 4 |
| 14 | 26 | 83 | 14 | 0.5 | 4 |
| 16 | 32 | 92 | 16 | 0.5 | 4 |
| 18 | 32 | 92 | 18 | 0.5 | 4 |
| 20 | 38 | 104 | 20 | 0.5 | 4 |
