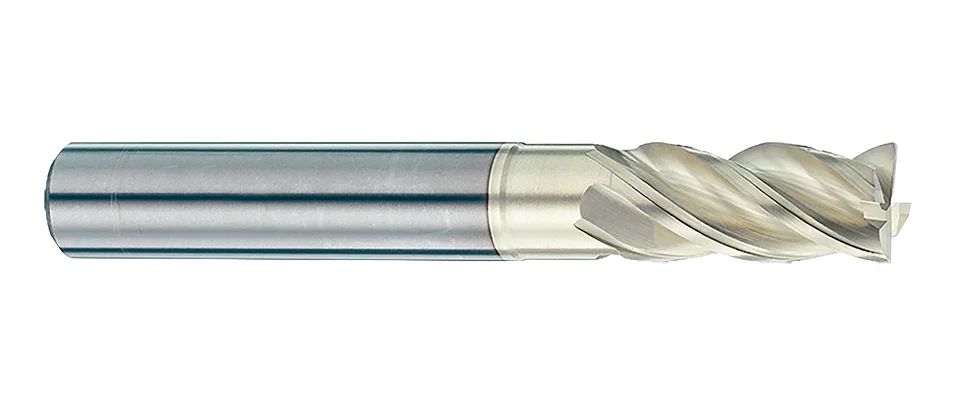

F652SX End Mills With Corner Radius For Difficult To Cut Materials

METRIC DIN
  • Designed with two variable helix geometry and two unequal flutes.
  • Sharp cutting edge is good for cutting toughness materials.
  • Designed with high removal cutting geometry.
  • Improved cutting edge strength with corner radius.
  • Applicable for profile surface machining.
  • Good wear resistance and lubricating effect with Nano multilayer coating.
  • Sharp cutting edge is suitable for cutting stainless steel, titanium, nickel and high temp alloys… etc.
  • Application for roughing and finishing cutting in different materials.
  • ※Tools with side lock is available.
  • VHM-carbide
  • SX______-NEW_0816_
  • 38-1
  • Blade4 New
  • N 8 度
  • 切削邊緣4
  • stainless-titanium_nickel
  • 7
  • 2
  • 5
  • 機械加工方式 1-1
Inquiry Download
PREV NEXT

Stainless, Titanium, Nickel

P H M K N S

Work Material

P H M S
GR1 GR2 GR3 GR4 GR5 GR8 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
R
Lc
L
d
L1
z
Dc R Lc L d L1 D1 z
0 -0.02 mm mm h5 mm mm mm
3 R0.2 8 57 6 14 2.8 4
4 R0.2 11 57 6 16 3.8 4
5 R0.2 13 57 6 18 4.8 4
6 R0.2 13 57 6 20 5.8 4
8 R0.2 19 63 8 26 7.7 4
10 R0.2 22 72 10 31 9.7 4
12 R0.2 26 83 12 37 11.6 4
16 R0.2 32 92 16 43 15.5 4
20 R0.2 38 104 20 53 19.5 4
3 R0.5 8 57 6 14 2.8 4
4 R0.5 11 57 6 16 3.8 4
5 R0.5 13 57 6 18 4.8 4
6 R0.5 13 57 6 20 5.8 4
8 R0.5 19 63 8 26 7.7 4
10 R0.5 22 72 10 31 9.7 4
12 R0.5 26 83 12 37 11.6 4
16 R0.5 32 92 16 43 15.5 4
20 R0.5 38 104 20 53 19.5 4
6 R1 13 57 6 20 5.8 4
8 R1 19 63 8 26 7.7 4
10 R1 22 72 10 31 9.7 4
12 R1 26 83 12 37 11.6 4
16 R1 32 92 16 43 15.5 4
20 R1 38 104 20 53 19.5 4
6 R2 13 57 6 20 5.8 4
8 R2 19 63 8 26 7.7 4
10 R2 22 72 10 31 9.7 4
12 R2 26 83 12 37 11.6 4
16 R2 32 92 16 43 15.5 4
20 R2 38 104 20 53 19.5 4
12 R3 26 83 12 37 11.6 4
16 R3 32 92 16 43 15.5 4
20 R3 38 104 20 53 19.5 4
