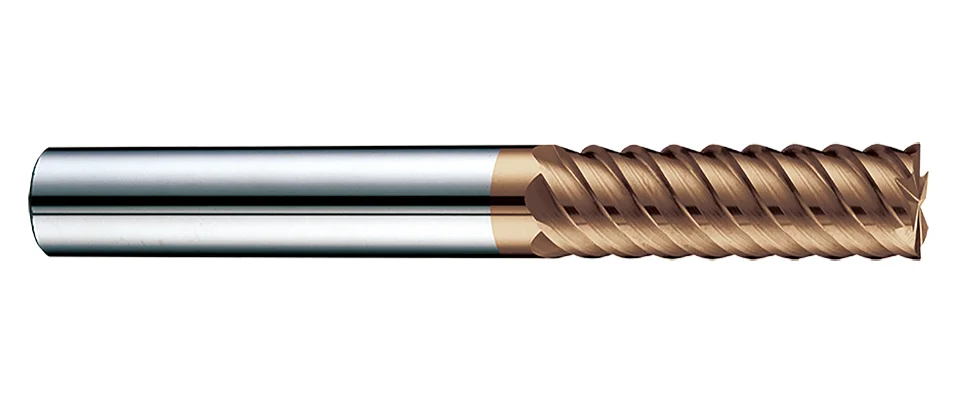

F661TX Finishing End Mills
METRIC
DIN
- Negative rake angle is good for cutting hardened materials.
- Selected Super SMG as tool material.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- Stronger strength of cutting edge is suitable for various materials from 40~70HRC.
- Various application for finishing cutting.
Steel 40-70 HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
H | K | ||
---|---|---|---|
GR5 | GR6 | GR7 | GR9 |
38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel | Cast Iron |
Product Specification
Dc | R | Lc | L | d | z |
---|---|---|---|---|---|
0 -0.02 | mm | mm | mm | h5 | |
6 | 0.2 | 19 | 63 | 6 | 6 |
8 | 0.2 | 28 | 72 | 8 | 6 |
10 | 0.2 | 34 | 84 | 10 | 6 |
12 | 0.2 | 40 | 97 | 12 | 6 |
16 | 0.2 | 48 | 108 | 16 | 8 |
20 | 0.2 | 56 | 122 | 20 | 10 |
