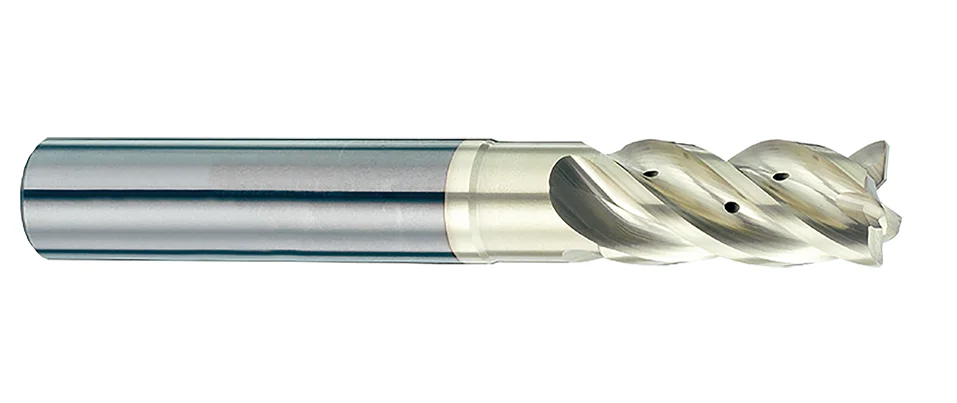

HF514SX Multipurpose End Mills With Coolant Hole
METRIC
DIN
- 4-Flutes corner chamfer end mill
- Special Y-shape oil-feed, variable helix angle, unequal flutes.
- Cooling the cutting point directly and improve chip removal
- Excellent corrosion resistance and lubrication properties with AltiXZrN nano-coating
- Suitable for cutting stainless steel and material up to HRC 48
- Applications include roughing, finishing, pluging, ramping… in different materials.
- ※Tool with side lock is available.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR8 | GR9 | GR10 | GR11 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
| Dc | Lc | L | d | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h5 | mm | mm | |
| 6 | 13 | 57 | 6 | 20 | 5.8 | 4 |
| 8 | 19 | 63 | 8 | 26 | 7.7 | 4 |
| 10 | 22 | 72 | 10 | 31 | 9.7 | 4 |
| 12 | 26 | 83 | 12 | 37 | 11.6 | 4 |
| 16 | 32 | 92 | 16 | 43 | 15.5 | 4 |
| 20 | 38 | 104 | 20 | 53 | 19.5 | 4 |
