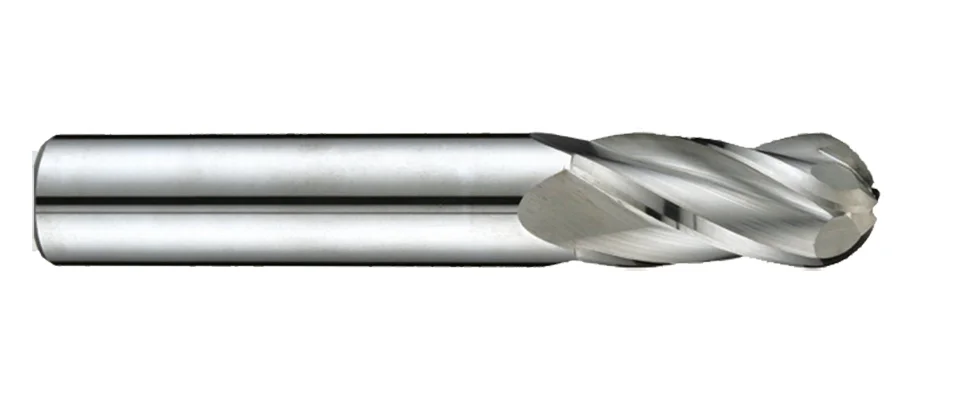

B214 Ball Nose End Mills

METRIC ANSI
  • Provide better rigidity and heat resistant.
  • Use for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
  • TiAlN is one of abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
  • ※Coated TiAlN version is available.
  • MG carbide
  • Bright_TiAlN
  • 螺旋角 2-2
  • 刀具刃數3-5
  • Hr10
  • 切削邊緣2
  • 機械加工方式 4-2
  • 機械加工方式 4-3
  • 機械加工方式 4-4
Inquiry Download
PREV NEXT

Steel < 30HRC

P H M K N S

Work Material

P M K N S
GR1 GR2 GR3 GR8 GR9 GR10 GR11 GR12 GR15 GR16
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel Stainless Steel Cast Iron Aluminium Copper Plastics Titanium Nickel

Product Specification

Product Filter
Dc
R
Lc
L
d
z
Dc R Lc L d z
0 -0.03 ±0.01 mm mm h6
1 0.5R 3 38 3 4
1.5 0.75R 5 38 3 4
2 1R 6 38 3 4
2.5 1.25R 7 38 3 4
3 1.5R 9 38 3 4
3.5 1.75R 12 50 4 4
4 2R 14 50 4 4
4.5 2.25R 16 50 5 4
5 2.5R 16 50 5 4
5.5 2.75R 16 50 6 4
6 3R 20 63 6 4
6.5 3.25R 20 63 8 4
7 3.5R 20 63 8 4
7.5 3.75R 20 63 8 4
8 4R 20 63 8 4
8.5 4.25R 22 72 10 4
9 4.5R 22 72 10 4
9.5 4.75R 22 72 10 4
10 5R 22 72 10 4
11 5.5R 26 75 12 4
12 6R 26 75 12 4
13 6.5R 32 89 14 4
14 7R 32 89 14 4
15 7.5R 32 89 16 4
16 8R 32 89 16 4
17 8.5R 38 100 18 4
18 9R 38 100 18 4
20 10R 38 100 20 4
