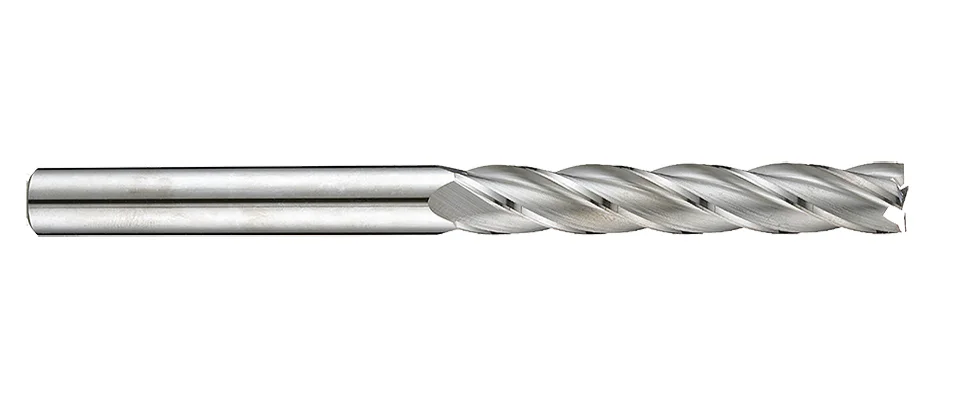

E188 Square End Mills

METRIC ANSI
  • Center Cutting tools are used in a variety of applications including plunging, drilling or ramping……
  • TiAlN is one of abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
  • ※Coated version is available
  • MG carbide
  • Bright_TiAlN
  • 螺旋角 2-2
  • 刀具刃數3-1
  • Hr10
  • 90
  • 1
  • 3
Inquiry Download
PREV NEXT

Steel < 30HRC

P H M K N S

Work Material

P M K N S
GR1 GR2 GR3 GR8 GR9 GR10 GR11 GR12 GR15 GR16
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel Stainless Steel Cast Iron Aluminium Copper Plastics Titanium Nickel

Product Specification

Product Filter
Dc
Cutting Diameter
  • 5
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
Lc
Length of Cutting
  • 45
  • 50
  • 75
  • 80
L
Overall Length
  • 100
  • 150
  • 200
d
Shank Diameter
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
z
Number of Flute
  • 4
Dc Lc L d z
0 -0.03 mm mm h6
5 45 100 6 4
6 50 100 6 4
8 75 150 8 4
10 75 150 10 4
12 75 200 12 4
16 80 200 16 4
20 80 200 20 4
