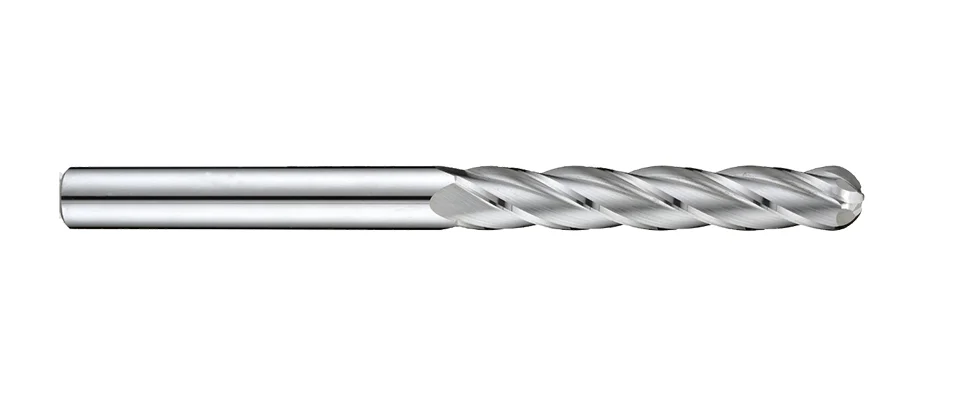

B284 Ball Nose End Mills

INCH ANSI
  • Provide better rigidity and heat resistant.
  • Use for high speed applications on cast iron, nonferrous materials, plastics and other tough-tomachine materials.
  • TiAlN is one of the abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
  • ※Coated TiAlN version is available.
  • MG carbide
  • Bright_TiAlN
  • 螺旋角 2-2
  • 刀具刃數3-5
  • Hr10
  • 切削邊緣2
  • 機械加工方式 4-2
  • 機械加工方式 4-3
  • 機械加工方式 4-4

Steel < 30HRC

P H M K N S

Work Material

P M K N S
GR1 GR2 GR3 GR8 GR9 GR10 GR11 GR12 GR15 GR16
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel Stainless Steel Cast Iron Aluminium Copper Plastics Titanium Nickel

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.001" Inch Inch h6
1/8 1 3 1/8 4
3/16 1-1/8 3 3/16 4
1/4 1-1/2 4 1/4 4
5/16 1-5/8 4 5/16 4
3/8 1-3/4 4 3/8 4
7/16 3 6 7/16 4
1/2 3 6 1/2 4
5/8 3 6 5/8 4
3/4 3 6 3/4 4
1 3 6 1 4
