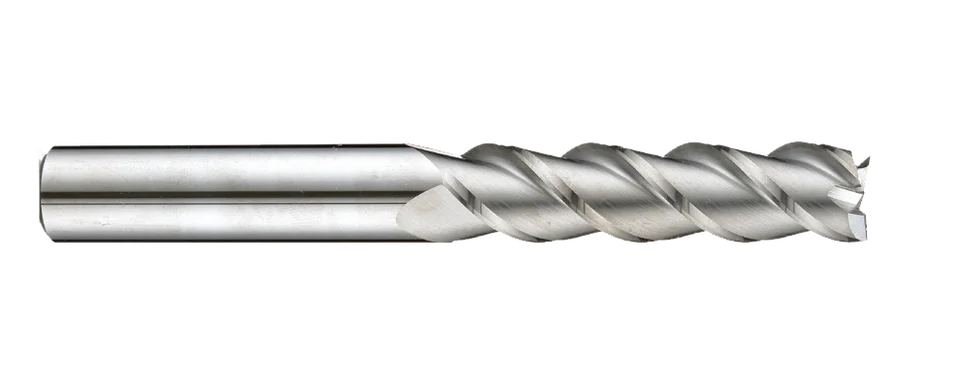

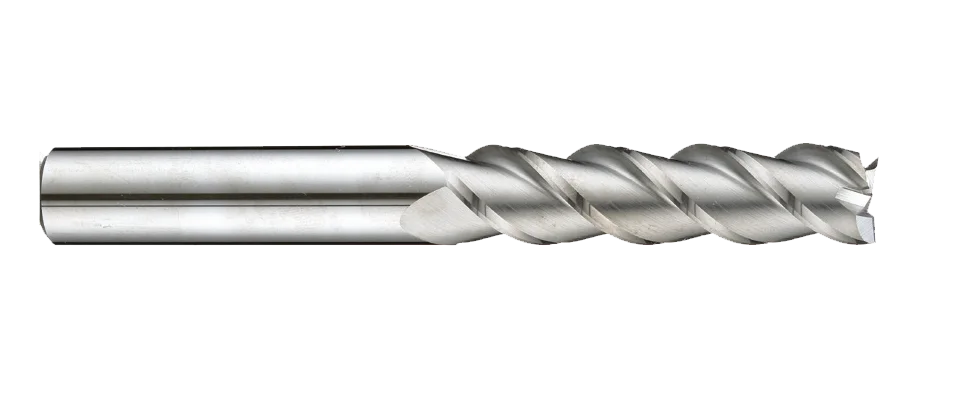

Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N | ||
|---|---|---|
| GR10 | GR11 | GR12 |
| Aluminium | Copper | Plastics |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0 -0.001" | Inch | Inch | h6 | |
| 1/8 | 3/4 | 2-1/4 | 1/8 | 3 |
| 3/16 | 3/4 | 2-1/2 | 3/16 | 3 |
| 1/4 | 1-1/8 | 3 | 1/4 | 3 |
| 5/16 | 1-1/8 | 3 | 5/16 | 3 |
| 3/8 | 1-1/8 | 3 | 3/8 | 3 |
| 7/16 | 2 | 4 | 7/16 | 3 |
| 1/2 | 2 | 4 | 1/2 | 3 |
| 5/8 | 2-1/4 | 5 | 5/8 | 3 |
| 3/4 | 2-1/4 | 5 | 3/4 | 3 |
| 1 | 2-1/4 | 5 | 1 |
