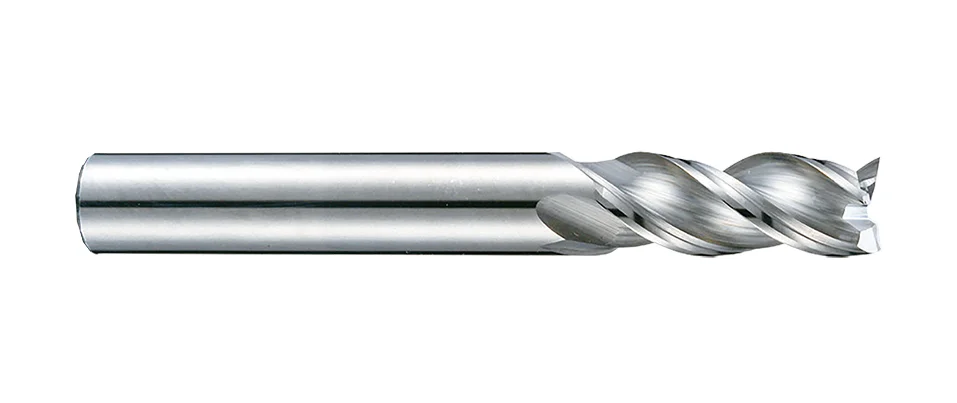

E143-1 End Mills For Aluminium
INCH
ANSI
- Designed for maximum metal removal rates, superior surface finishes and better anti-vibration rate.
- Use for Aluminium which from roughing to finishing operations with one tool.
- High spiral and optimal rake angle allow reduce cutting forces.
Aluminium
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| N |
|---|
| GR10 |
| Aluminium |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0 -0.001" | Inch | Inch | h5 | |
| 1/8 | 1/4 | 1-1/2 | 1/8 | 3 |
| 5/32 | 3/8 | 2 | 3/16 | 3 |
| 3/16 | 3/8 | 2 | 3/16 | 3 |
| 1/4 | 3/8 | 2 | 1/4 | 3 |
| 5/16 | 7/16 | 2 | 5/16 | 3 |
| 3/8 | 1/2 | 2 | 3/8 | 3 |
| 7/16 | 9/16 | 2-1/2 | 7/16 | 3 |
| 1/2 | 5/8 | 2-1/2 | 1/2 | 3 |
