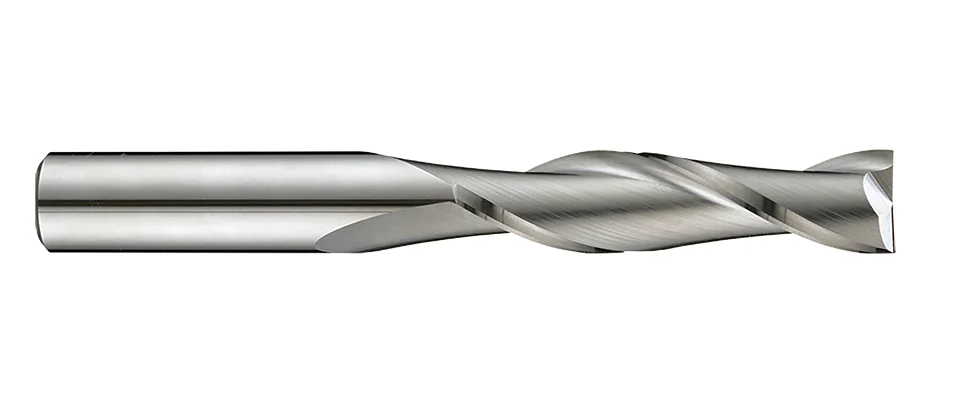

E182 Square End Mills
INCH
ANSI
- 2 Flute Center Cutting
- Center Cutting tools are used in a variety of applications including plunging, drilling or ramping….
- TiAlN is one of abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
- ※Coated TiAlN version is available.
Steel < 30HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | M | K | N | S | |||||
|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR8 | GR9 | GR10 | GR11 | GR12 | GR15 | GR16 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Plastics | Titanium | Nickel |
Product Specification
| Dc | Lc | L | d | z |
|---|---|---|---|---|
| 0 -0.001" | Inch | Insh | h6 | |
| 1/8 | 3/4 | 2-1/4 | 1/8 | 2 |
| 3/16 | 3/4 | 2-1/2 | 3/16 | 2 |
| 1/4 | 1-1/8 | 3 | 1/4 | 2 |
| 5/16 | 1-1/8 | 3 | 5/16 | 2 |
| 3/8 | 1-1/8 | 3 | 3/8 | 2 |
| 7/16 | 2 | 4 | 7/16 | 2 |
| 1/2 | 2 | 4 | 1/2 | 2 |
| 5/8 | 2-1/4 | 5 | 5/8 | 2 |
| 3/4 | 2-1/4 | 5 | 3/4 | 2 |
| 1 | 2-1/4 | 5 | 1 | 2 |
