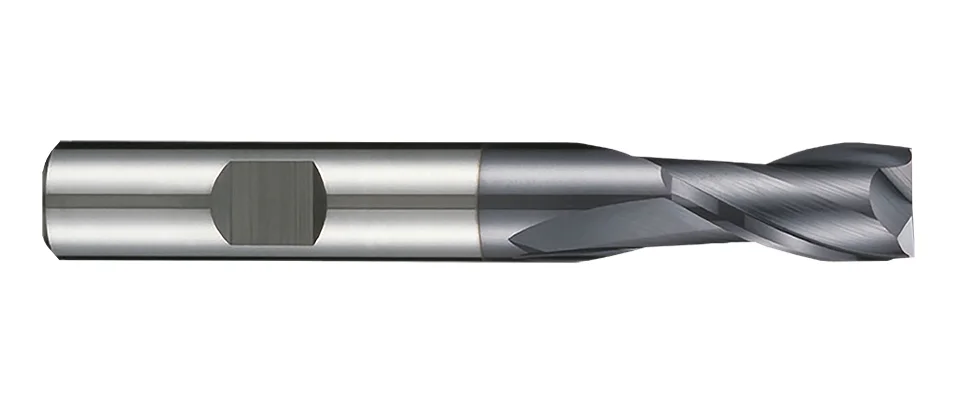

F501HX-HB Universal End Mills

METRIC DIN
  • With MG carbide material and designed with sharp cutting edge are good for cutting different steels below 48HRC as well as cast iron.
  • VHM-carbide
  • ALTiCrNHX
  • 螺旋角 2-2
  • 刀具刃數1-1
  • 2
  • 45度(0.05-0.2)
  • 1
  • 2
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d 45゜ z
0 -0.02 mm mm h5 mm
3 7 57 6 0.03 2
4 8 57 6 0.04 2
5 10 57 6 0.05 2
6 10 57 6 0.06 2
8 16 63 8 0.08 2
10 19 72 10 0.1 2
12 22 83 12 0.12 2
14 22 83 14 0.14 2
16 26 92 16 0.16 2
18 26 92 18 0.18 2
20 32 104 20 0.2 2
