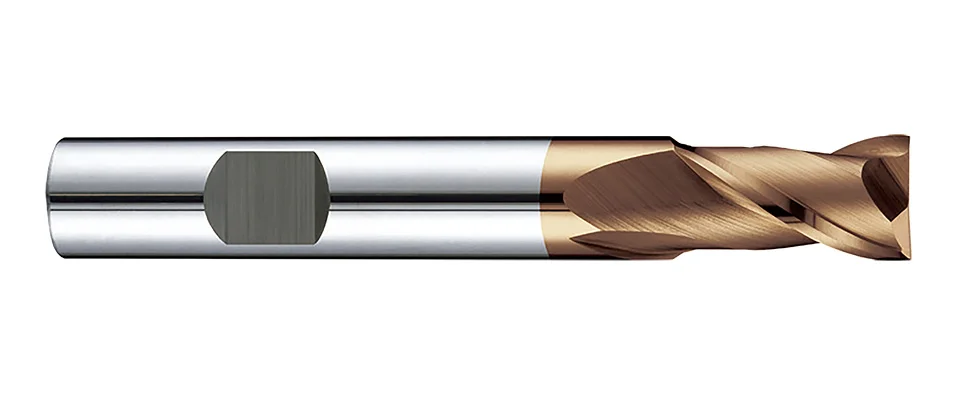

F602TX-HB Universal End Mills
METRIC
DIN
- F602TX With UMG carbide material is good for cutting hardened materials < 62HRC.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- With stronger Strength of cutting edge is suitable for steels below 62HRC.
- Various application for general cutting.
Steel < 62HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | |||||
|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR6 | GR7 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel |
Product Specification
| Dc | Lc | L | d | 45゜ | z |
|---|---|---|---|---|---|
| 0 -0.02 | mm | mm | h5 | mm | |
| 3 | 7 | 57 | 6 | 0.03 | 2 |
| 4 | 8 | 57 | 6 | 0.04 | 2 |
| 5 | 10 | 57 | 6 | 0.05 | 2 |
| 6 | 10 | 57 | 6 | 0.06 | 2 |
| 8 | 16 | 63 | 8 | 0.08 | 2 |
| 10 | 19 | 72 | 10 | 0.1 | 2 |
| 12 | 22 | 83 | 12 | 0.12 | 2 |
| 16 | 26 | 92 | 16 | 0.16 | 2 |
| 20 | 32 | 104 | 20 | 0.2 | 2 |
