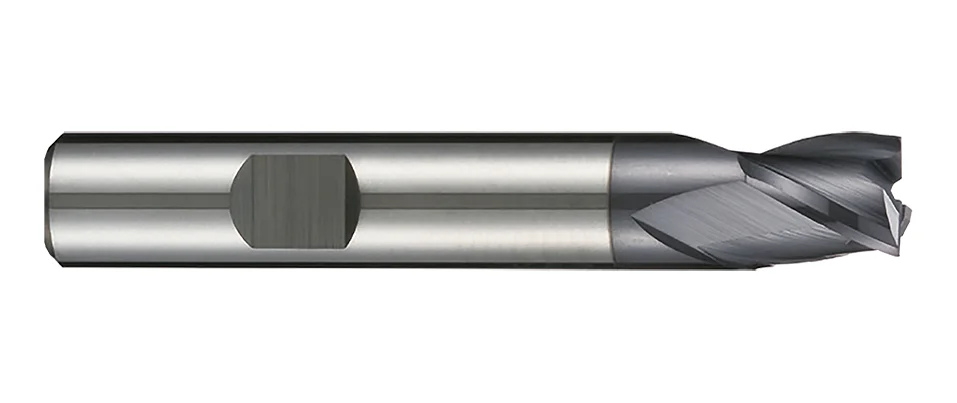

F503HX-HB Universal End Mills
METRIC
DIN
- F503HX With MG carbide material is good for cutting materials < 48HRC.
- Good wear resistance and lubricating effect with Nano multilayer coating.
- With sharp cutting edge is good for cutting different steels below 48HRC as well as cast iron.
- Various application for general cutting.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | |||
---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR11 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Copper |
Product Specification
Dc | Lc | L | d | 45゜ | z |
---|---|---|---|---|---|
0 -0.02 | mm | mm | h5 | mm | |
2 | 3 | 50 | 6 | 0.02 | 3 |
3 | 4 | 50 | 6 | 0.03 | 3 |
4 | 5 | 54 | 6 | 0.04 | 3 |
5 | 6 | 54 | 6 | 0.05 | 3 |
6 | 7 | 54 | 6 | 0.06 | 3 |
8 | 9 | 58 | 8 | 0.08 | 3 |
10 | 11 | 66 | 10 | 0.1 | 3 |
12 | 12 | 73 | 12 | 0.12 | 3 |
14 | 14 | 75 | 14 | 0.14 | 3 |
16 | 16 | 82 | 16 | 0.16 | 3 |
18 | 18 | 84 | 18 | 0.18 | 3 |
20 | 20 | 92 | 20 | 0.2 | 3 |
