  • High Precision NC Machine Reamers In Steps of 0.01mm For Automatic Lathes
R318
R318

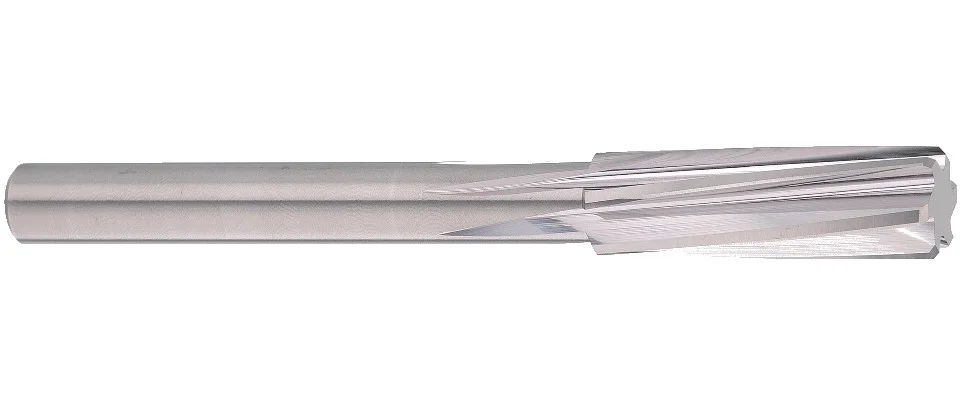

R318 High Precision NC Machine Reamers In Steps of 0.01mm For Automatic Lathes

METRIC DIN
  • Designed with left helix and right cutting flutes
  • with unequal flute design.
  • Downward chip evacuation.
  • Accuracy tolerance: 0/+0.004mm.
  • Application for reaming different steels below
  • 48HRC, cast iron…and etc.
  • VHM-carbide
  • uncoated bright
  • 2-1
  • 不等刀具刃數5-3
  • blind hole_0
  • Through Hole_0
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H K N
GR1 GR2 GR3 GR4 GR5 GR6 GR9 GR10 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel Cast Iron Aluminium Copper

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
+0.004-0 mm mm h5 teeth
1.98~1.99 18 50 1.5 4
2 18 50 1.5 4
2.01~2.03 18 50 1.5 4
2.04~2.12 18 50 1.5 4
2.13~2.19 18 50 2 4
2.20 18 50 2 4
2.21~2.36 18 50 2 4
2.37~2.49 18 50 2 4
2.50 18 50 2 4
2.51~2.65 18 50 2 4
2.66~2.79 20 56 2.5 6
2.80 20 56 2.5 6
2.81~2.90 20 56 2.5 6
2.91~2.99 20 56 2.5 6
3 20 56 2.5 6
3.01~3.03 20 56 2.5 6
3.04~3.19 20 56 2.5 6
3.20 20 56 3 6
3.21~3.35 20 56 3 6
3.36~3.49 20 56 3 6
3.50 20 56 3 6
3.51~3.60 20 56 3 6
3.61~3.75 20 56 3 6
3.76~3.90 20 56 3.5 6
3.91~3.99 20 56 3.5 6
4 20 56 3.5 6
4.01~4.09 20 56 3.5 6
4.10~4.25 20 56 3.5 6
4.26~4.49 22 63 4 6
4.50 22 63 4 6
4.51~4.60 22 63 4 6
4.61~4.75 22 63 4 6
4.76~4.90 22 63 4 6
4.91~4.99 22 63 4 6
5 22 63 4 6
5.01~5.10 22 63 4 6
5.11~5.30 22 63 4 6
5.31~5.40 22 63 5 6
5.41~5.49 22 63 5 6
5.50 22 63 5 6
5.51~5.60 22 63 5 6
5.61~5.80 22 63 5 6
5.81~5.90 22 63 5 6
5.91~5.99 22 63 5 6
6 22 63 5 6
6.01~6.03 22 63 5 6
6.04~6.30 22 63 5 6
6.31~6.49 22 63 5 6
6.50 22 63 5 6
6.51~6.70 22 63 5 6
6.71~6.80 25 71 6 6
6.81~6.99 25 71 6 6
7 25 71 6 6
7.01~7.10 25 71 6 6
7.11~7.30 25 71 6 6
7.31~7.49 25 71 6 6
7.50 25 71 6 6
7.51~7.60 25 71 6 6
7.61~7.80 25 71 6 6
7.81~7.90 25 71 6 6
7.91~7.99 25 71 6 6
8 25 71 6 6
8.01~8.09 25 71 6 6
8.10~8.30 25 71 6 6
8.31~8.49 25 71 6 6
8.50 25 71 6 6
8.51~8.60 25 71 8 6
8.61~8.80 25 71 8 6
8.81~8.99 25 71 8 6
9 25 71 8 6
9.01~9.10 25 71 8 6
9.11~9.30 25 71 8 6
9.31~9.49 25 71 8 6
9.50 25 71 8 6
9.51~9.69 25 71 8 6
9.70~9.85 25 71 8 6
9.86~9.90 25 71 8 6
9.91~9.99 25 71 8 6
10 25 71 8 6
10.01~10.05 25 71 8 6
10.06~10.20 25 71 8 6
10.21~10.49 25 71 8 6
10.50 25 71 8 6
10.51~10.60 25 71 8 6
10.61~10.79 28 80 10 6
10.80~10.99 28 80 10 6
11 28 80 10 6
11.01~11.06 28 80 10 6
11.07~11.39 28 80 10 6
11.40~11.49 28 80 10 6
11.50 28 80 10 6
11.51~11.80 28 80 10 6
11.81~11.90 28 80 10 6
11.91~11.99 28 80 10 6
12 28 80 10 6
12.01~12.05 28 80 10 6
