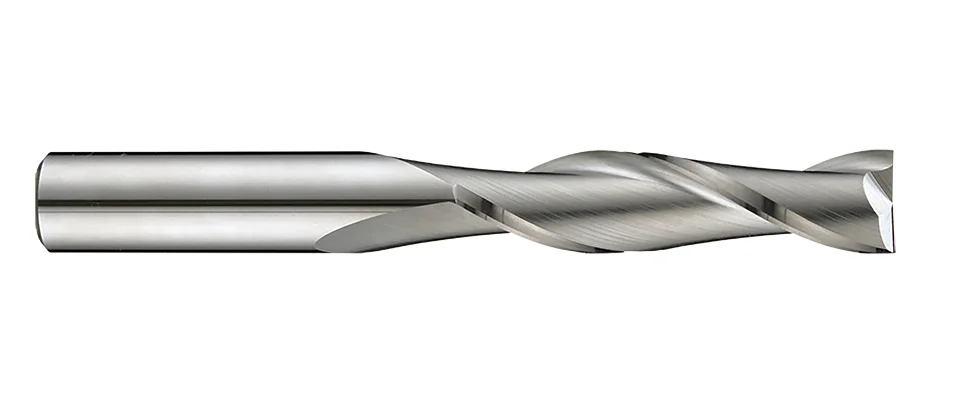

E182F Square End Mills
METRIC
ANSI
- Center Cutting tools are used in a variety of applications including plunging, drilling or ramping……
- TiAlN is one of abrasive resistant coatings.
- It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
Steel < 30HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | M | K | N | S | |||||
---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR8 | GR9 | GR10 | GR11 | GR12 | GR15 | GR16 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Plastics | Titanium | Nickel |
Product Specification
Dc | Lc | L | d |
---|---|---|---|
0 -0.03 | mm | mm | h6 |
3 | 20 | 57 | 3 |
4 | 20 | 57 | 4 |
5 | 25 | 63 | 5 |
6 | 28 | 75 | 6 |
7 | 30 | 75 | 8 |
8 | 30 | 75 | 8 |
9 | 32 | 75 | 10 |
10 | 32 | 75 | 10 |
12 | 50 | 100 | 12 |
14 | 57 | 127 | 14 |
16 | 57 | 127 | 16 |
20 | 57 | 127 | 20 |
