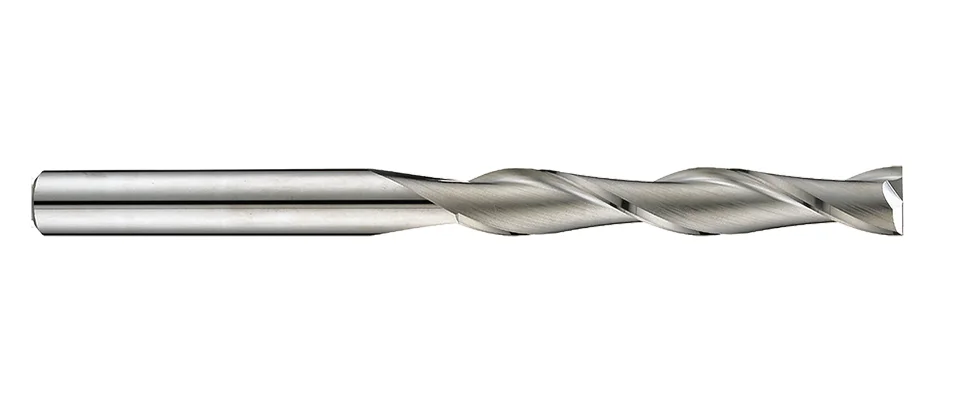

E185F Square End Mills
METRIC
ANSI
- Center Cutting tools are used in a variety of applications including plunging, drilling or ramping……
- TiAlN is one of abrasive resistant coatings. It is commonly used for machining aircraft and aerospace material, Nickel Alloys, Stainless Steels, Titanium, Cast Iron and Steel.
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | M | K | N | S | |||||
|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR8 | GR9 | GR10 | GR11 | GR12 | GR15 | GR16 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Plastics | Titanium | Nickel |
Product Specification
| Dc | Lc | L | d |
|---|---|---|---|
| 0 -0.03 | mm | mm | h6 |
| 3 | 25 | 75 | 3 |
| 4 | 28 | 75 | 4 |
| 5 | 32 | 75 | 5 |
| 6 | 38 | 100 | 6 |
| 8 | 42 | 100 | 8 |
| 10 | 45 | 100 | 10 |
| 12 | 75 | 150 | 12 |
| 14 | 80 | 150 | 14 |
| 16 | 80 | 150 | 16 |
| 20 | 80 | 150 | 20 |
