R212TX
R212TX

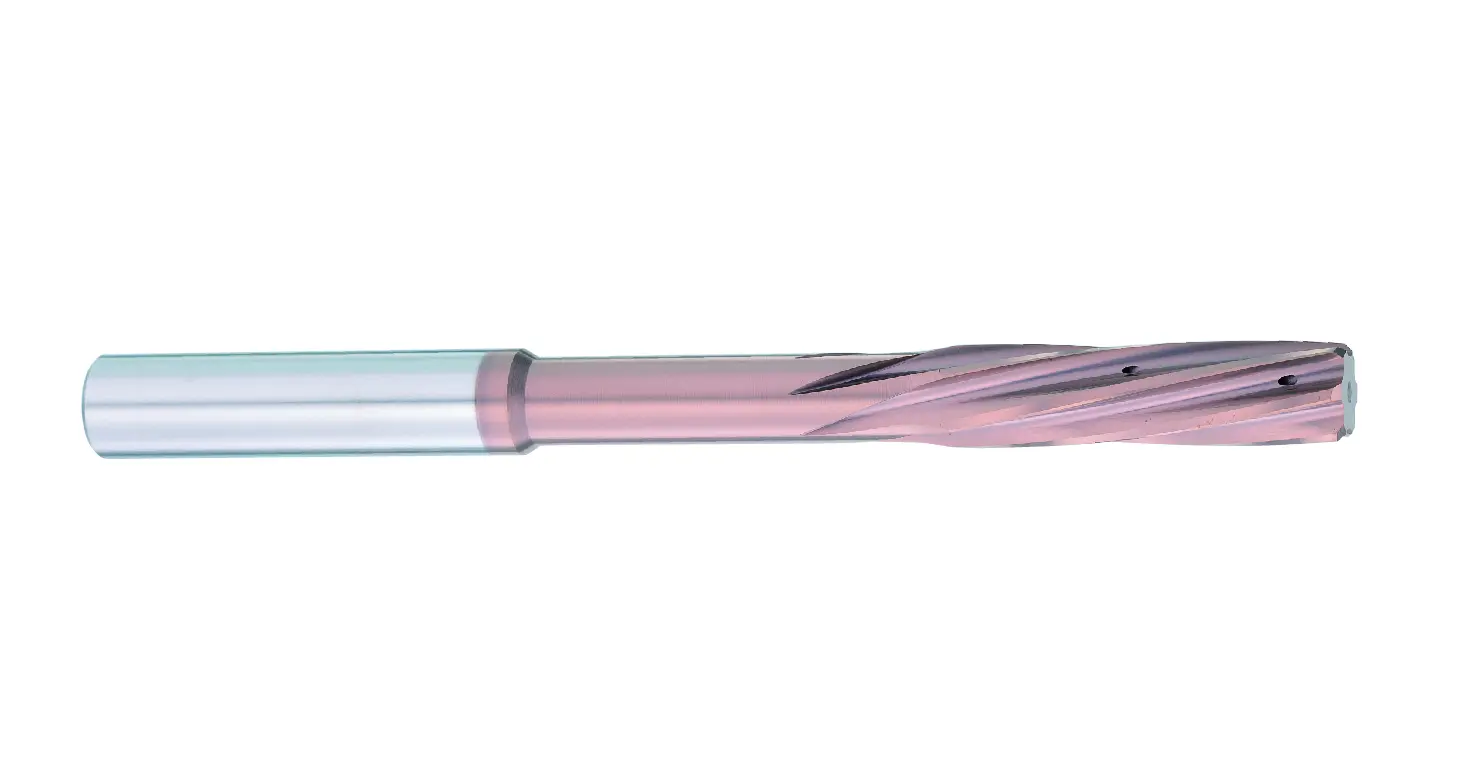

R212TX NC Machine Reamers (High Hardness‧Difficult To Cut Material‧Coolant Hole)

METRIC DIN
  • Designed with left helix and right cutting flutes with unequal flute design.
  • Downward chip evacuation.
  • Application for reaming different steels below62HRC, stainless steel, High temp alloys, cast iron,copper…and etc.
  • Extremely high reaming life with coolant holes forblade cooling.
  • Nano multilayer coating AlTiSiN with superior wear resistance is suitable for high hardness materials reaming.
  • Accuracy tolerance: H7 (m5)
  • 0/+0.004mm
  • VHM-carbide
  • 塗層種類4
  • 未命名-2_0
  • L12_0
  • 不等刀具刃數5-3
  • blind hole_0
  • Through Hole_0
Inquiry Download
PREV NEXT

P H M K N S

Work Material

Product Specification

Product Filter
Dc
Lc
L
d
L1
z
Dc Lc L d L1 z
mm mm mm mm mm teeth
2.97 20 80 4 42 4
2.98 20 80 4 42 4
2.99 20 80 4 42 4
3 20 80 4 42 4
3.01 20 80 4 42 4
3.02 20 80 4 42 4
3.03 20 80 4 42 4
3.1 20 80 4 42 4
3.2 20 80 4 42 4
3.3 20 80 4 42 4
3.4 20 80 4 42 4
3.5 20 80 4 42 4
3.6 20 80 4 42 4
3.7 20 80 4 42 4
3.8 20 80 4 42 4
3.9 20 80 4 42 4
3.97 20 80 4 42 4
3.98 20 80 4 42 4
3.99 20 80 4 42 4
4 20 80 4 42 4
4.01 20 80 4 42 4
4.02 20 80 4 42 4
4.03 20 80 4 42 4
4.1 20 80 6 42 4
4.2 20 80 6 42 4
4.3 20 80 6 42 4
4.4 20 80 6 42 4
4.5 20 80 6 42 4
4.6 20 80 6 42 4
4.7 20 80 6 42 4
4.8 20 80 6 42 4
4.9 20 80 6 42 4
4.97 20 80 6 42 4
4.98 20 80 6 42 4
4.99 20 80 6 42 4
5 20 80 6 42 4
5.01 20 80 6 42 4
5.02 20 80 6 42 4
5.03 20 80 6 42 4
5.1 25 100 6 52 6
5.2 25 100 6 52 6
5.3 25 100 6 52 6
5.4 25 100 6 52 6
5.5 25 100 6 52 6
5.6 25 100 6 52 6
5.7 25 100 6 52 6
5.8 25 100 6 52 6
5.9 25 100 6 52 6
5.97 25 100 6 52 6
5.98 25 100 6 52 6
5.99 25 100 6 52 6
6 25 100 6 52 6
6.01 25 100 6 52 6
6.02 25 100 6 52 6
6.03 25 100 6 52 6
6.1 25 100 8 52 6
6.2 25 100 8 52 6
6.3 25 100 8 52 6
6.4 25 100 8 52 6
6.5 25 100 8 52 6
6.6 25 100 8 52 6
6.7 25 100 8 52 6
6.8 25 100 8 52 6
6.9 25 100 8 52 6
7 25 100 8 52 6
7.1 25 100 8 52 6
7.2 25 100 8 52 6
7.3 25 100 8 52 6
7.4 25 100 8 52 6
7.5 25 100 8 52 6
7.6 25 100 8 52 6
7.7 25 100 8 52 6
7.8 25 100 8 52 6
7.9 25 100 8 52 6
7.97 25 100 8 52 6
7.98 25 100 8 52 6
7.99 25 100 8 52 6
8 25 100 8 52 6
8.01 25 100 8 52 6
8.02 25 100 8 52 6
8.03 25 100 8 52 6
8.1 30 120 10 62 6
8.2 30 120 10 62 6
8.3 30 120 10 62 6
8.4 30 120 10 62 6
8.5 30 120 10 62 6
8.6 30 120 10 62 6
8.7 30 120 10 62 6
8.8 30 120 10 62 6
8.9 30 120 10 62 6
9 30 120 10 62 6
9.1 30 120 10 62 6
9.2 30 120 10 62 6
9.3 30 120 10 62 6
9.4 30 120 10 62 6
9.5 30 120 10 62 6
9.6 30 120 10 62 6
9.7 30 120 10 62 6
9.8 30 120 10 62 6
9.9 30 120 10 62 6
9.97 30 120 10 62 6
9.98 30 120 10 62 6
9.99 30 120 10 62 6
10 30 120 10 62 6
10.01 30 120 10 62 6
10.02 30 120 10 62 6
10.03 30 120 10 62 6
10.1 35 140 12 72 6
10.2 35 140 12 72 6
10.3 35 140 12 72 6
10.4 35 140 12 72 6
10.5 35 140 12 72 6
10.6 35 140 12 72 6
10.7 35 140 12 72 6
10.8 35 140 12 72 6
10.9 35 140 12 72 6
11 35 140 12 72 6
11.1 35 140 12 72 6
11.2 35 140 12 72 6
11.3 35 140 12 72 6
11.4 35 140 12 72 6
11.5 35 140 12 72 6
11.6 35 140 12 72 6
11.7 35 140 12 72 6
11.8 35 140 12 72 6
11.9 35 140 12 72 6
11.97 35 140 12 72 6
11.98 35 140 12 72 6
11.99 35 140 12 72 6
12 35 140 12 72 6
12.01 35 140 12 72 6
12.02 35 140 12 72 6
12.03 35 140 12 72 6
