E143DX End Mills For Aluminium

METRIC ASIA

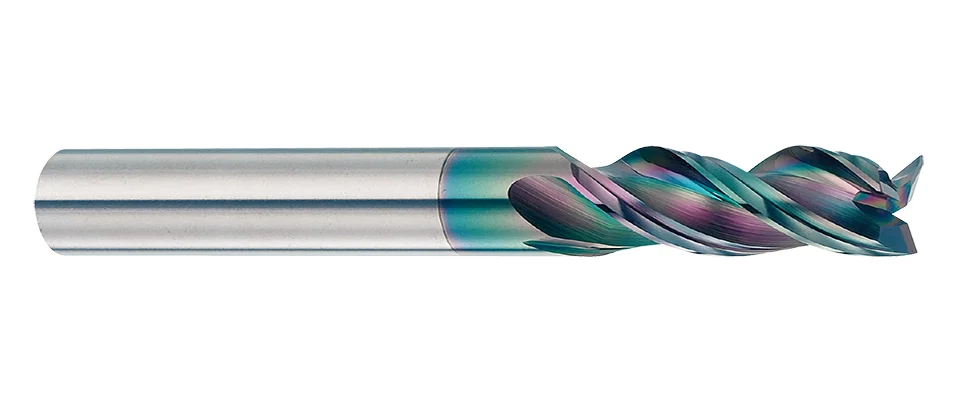

  • End Mills for Aluminium with Diamond coating- 3 Flutes
  • Design with sharp cutting edge, high removal cutting geometry, and fine grinding smooth surface to prevent sticking problem.
  • Higher finishing of cutting edge.
  • With high abrasion DLC diamond coating type to enhance surface lubrication and wear resistance.
  • Application for roughing and finishing in various Aluminium.
  • MG carbide
  • 塗層種類7
  • 螺旋角( 40度~)- 139頁
  • Blade3 New
  • N 20度- 139頁
  • 90
  • 1
  • 機械加工方式 4-5
  • 機械加工方式 1-1
  • 機械加工方式 2-2

Aluminium

P H M K N S

Work Material

N
GR10
Aluminium

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
3 8 50 6 3
4 11 50 6 3
5 13 50 6 3
6 16 50 6 3
8 20 60 8 3
10 25 72 10 3
12 30 75 12 3
16 40 100 16 3
20 40 100 20 3
