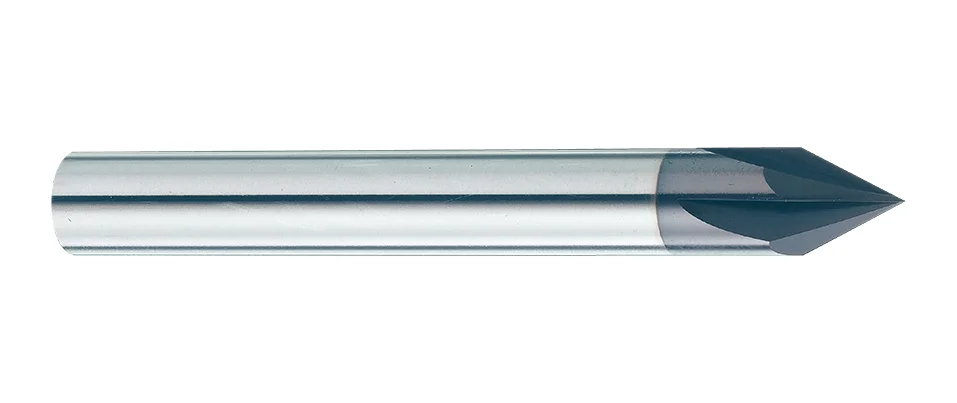

E108X End Mills For Chamfering 60°

METRIC ASIA
  • End Mills for Chamfering 60°- 4 Flutes
  • Suitable for drilling, tappering, countersinking, NC Spot drilling and frame milling.
  • UMG carbide
  • 塗層種類2
  • 螺旋角 1-1
  • Blade4 New
  • Nr5
  • 60-2
  • type of operation (1) -61頁
  • type of operation (2) -61頁

Steel < 52HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR10 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Aluminium Copper

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
2 4 38 3 4
3 6 38 3 4
4 9 50 4 4
5 10 50 6 4
6 12 50 6 4
8 15 60 8 4
10 16 72 10 4
12 18 75 12 4
16 25 90 16 4
20 30 100 20 4
