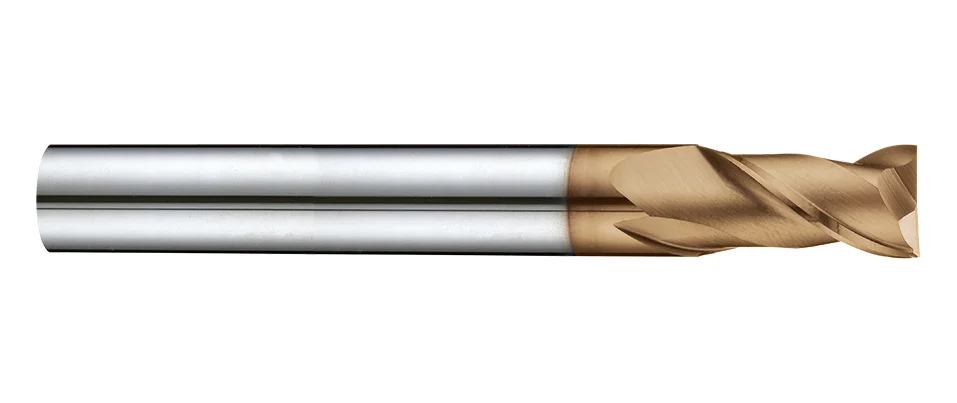

E163TX Universal End Mills
METRIC
ASIA
- Universal End Mills- 2 Flutes
- Using the UMG carbide material and coated with high wear resistance TX coating enable to enhance tool life.
- Suitable for high hardness material finishing, general cutting process and enable to use for drill milling.
Steel < 56HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | ||||
---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR6 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel |
Product Specification
Dc | Lc | L | d | z |
---|---|---|---|---|
0 -0.02 | mm | mm | h6 | |
3 | 12 | 70 | 6 | 2 |
4 | 15 | 70 | 6 | 2 |
5 | 20 | 80 | 6 | 2 |
6 | 20 | 80 | 6 | 2 |
7 | 25 | 100 | 8 | 2 |
8 | 25 | 100 | 8 | 2 |
9 | 30 | 100 | 10 | 2 |
10 | 30 | 100 | 10 | 2 |
11 | 35 | 110 | 12 | 2 |
12 | 40 | 110 | 12 | 2 |
14 | 40 | 120 | 16 | 2 |
16 | 50 | 140 | 16 | 2 |
20 | 60 | 160 | 20 | 2 |
