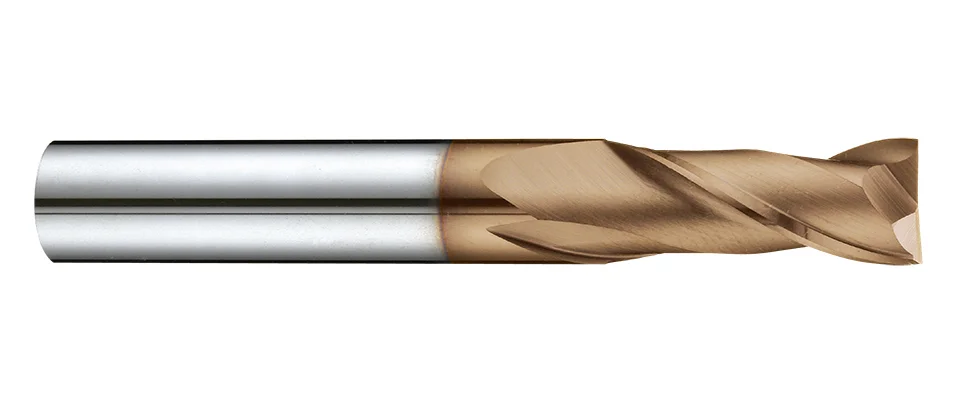

E162TX Universal End Mills

METRIC ASIA
  • Universal End Mills- 2 Flutes
  • Using the UMG carbide material and coated with high wear resistance TX coating enable to enhance tool life.
  • Suitable for high hardness material finishing, general cutting process and enable to use for drill milling.
  • UMG carbide
  • 塗層種類4
  • 螺旋角 3-2
  • 刀具刃數1-1
  • N 1' 30度 - 7頁
  • 90
  • 1
  • 2
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 56HRC

P H M K N S

Work Material

P H
GR1 GR2 GR3 GR4 GR5 GR6
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel 48~56HRC Hardened Steel

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
0.1 0.3 50 4 2
0.2 0.5 50 4 2
0.3 0.8 50 4 2
0.4 1 50 4 2
0.5 1.2 50 4 2
0.6 1.5 50 4 2
0.8 2 50 4 2
1 3 50 4 2
1.5 5 50 4 2
2 6 50 4 2
2.5 8 50 4 2
3A 8 50 4 2
4A 11 50 4 2
3 8 50 6 2
3.5 10 50 6 2
4 11 50 6 2
4.5 11 50 6 2
5 13 50 6 2
5.5 13 50 6 2
6 16 50 6 2
7 20 60 8 2
8 20 60 8 2
9 22 72 10 2
10 22 72 10 2
11 26 75 12 2
12 26 75 12 2
14 32 90 16 2
16 38 100 16 2
18 38 100 20 2
20 38 100 20 2
