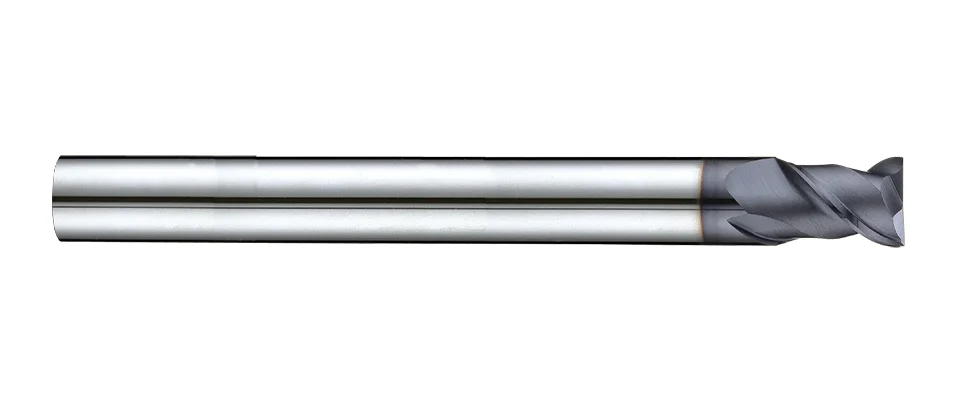

E127X Universal End Mills

METRIC ASIA
  • Universal End Mills with Long Length- 2 Flutes
  • Suitable for general cutting process, extended length enable to work on deeper work piece with excellent cutting surface.
  • Nano multilayer coating enable to enhance wear resistance.
  • MG carbide
  • 塗層種類2
  • 螺旋角 3-2
  • 刀具刃數1-1
  • N 10度 - 3頁
  • 90
  • 1
  • 2
  • 3
  • 機械加工方式 4-5
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR11
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Copper

Product Specification

Product Filter
Dc
Lc
L
d
z
Dc Lc L d z
0 -0.02 mm mm h6
3 12 80 4 2
4 15 80 4 2
5 20 100 6 2
6 20 100 6 2
8 25 130 8 2
10 30 160 10 2
12 40 180 12 2
16 50 210 16 2
20 60 210 20 2
