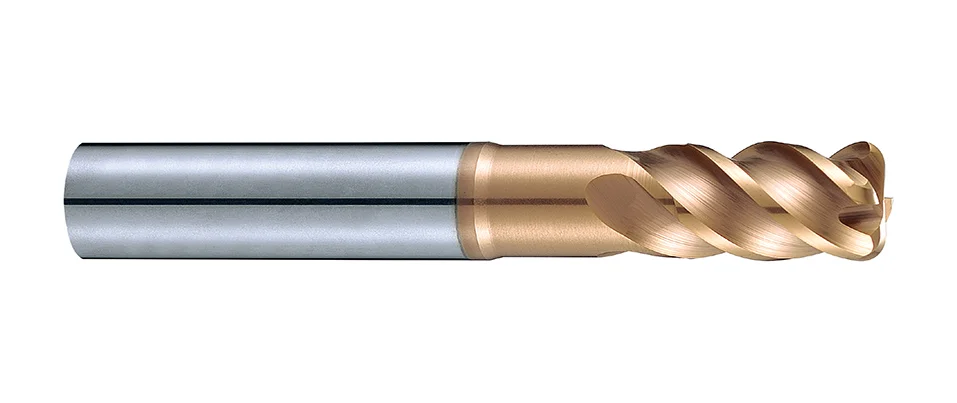

B275TX High Performance End Mills With Corner Radius
METRIC
ASIA
- High Performance End Mills with Corner Radius- Short Type
- Using the SMG carbide material and coated multilayer nano coating to increase lubrication and wear resistance with good tool life.
- High precision corner radius suitable for general & finishing on high hardness and high precision mold process.
Steel < 62HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | S | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR6 | GR7 | GR8 | GR9 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | 56~68HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
Dc | R | Lc | L | d | L1 | D1 | z |
---|---|---|---|---|---|---|---|
0 -0.02 | ±0.01 | mm | mm | h6 | mm | mm | |
3 | R0.2 | 5 | 50 | 6 | 8 | 2.85 | 4 |
3 | R0.5 | 5 | 50 | 6 | 8 | 2.85 | 4 |
4 | R0.2 | 6 | 50 | 6 | 10 | 3.8 | 4 |
4 | R0.5 | 6 | 50 | 6 | 10 | 3.8 | 4 |
5 | R0.2 | 8 | 50 | 6 | 13 | 4.8 | 4 |
5 | R0.5 | 8 | 50 | 6 | 13 | 4.8 | 4 |
6 | R0.2 | 9 | 50 | 6 | 15 | 5.7 | 4 |
6 | R0.5 | 9 | 50 | 6 | 15 | 5.7 | 4 |
6 | R1 | 9 | 50 | 6 | 15 | 5.7 | 4 |
6 | R1.5 | 9 | 50 | 6 | 15 | 5.7 | 4 |
8 | R0.2 | 12 | 60 | 8 | 20 | 7.6 | 4 |
8 | R0.5 | 12 | 60 | 8 | 20 | 7.6 | 4 |
8 | R1 | 12 | 60 | 8 | 20 | 7.6 | 4 |
8 | R2 | 12 | 60 | 8 | 20 | 7.6 | 4 |
10 | R0.2 | 15 | 75 | 10 | 25 | 9.5 | 4 |
10 | R0.5 | 15 | 75 | 10 | 25 | 9.5 | 4 |
10 | R1 | 15 | 75 | 10 | 25 | 9.5 | 4 |
10 | R2 | 15 | 75 | 10 | 25 | 9.5 | 4 |
12 | R0.2 | 18 | 80 | 12 | 30 | 11.4 | 4 |
12 | R0.5 | 18 | 80 | 12 | 30 | 11.4 | 4 |
12 | R1 | 18 | 80 | 12 | 30 | 11.4 | 4 |
12 | R2 | 18 | 80 | 12 | 30 | 11.4 | 4 |
16 | R0.5 | 24 | 100 | 16 | 40 | 15.2 | 4 |
16 | R1 | 24 | 100 | 16 | 40 | 15.2 | 4 |
16 | R2 | 24 | 100 | 16 | 40 | 15.2 | 4 |
16 | R3 | 24 | 100 | 16 | 40 | 15.2 | 4 |
20 | R0.5 | 30 | 110 | 20 | 50 | 19 | 4 |
20 | R1 | 30 | 110 | 20 | 50 | 19 | 4 |
20 | R2 | 30 | 110 | 20 | 50 | 19 | 4 |
20 | R3 | 30 | 110 | 20 | 50 | 19 | 4 |
