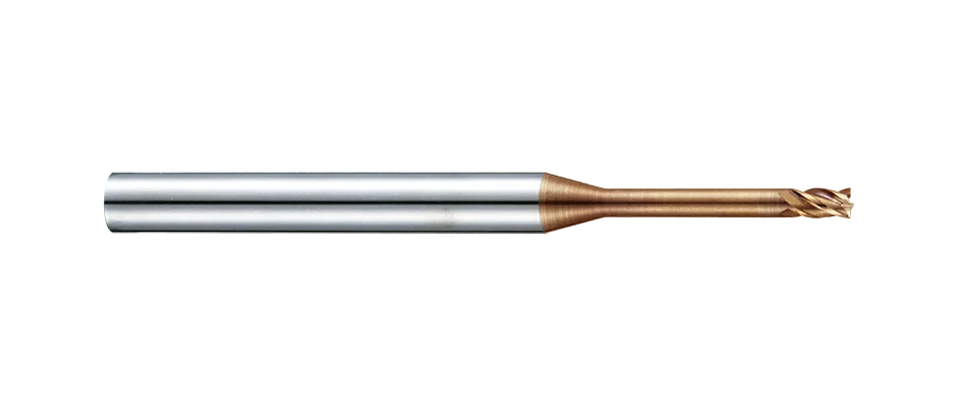

F693TX Toric End Mills For Rib Processing With Corner Radius

METRIC ASIA
  • End Mills For Rib Processing with Corner Radius- 4 Flutes
  • Widely used in high precition mold, deep machining angle clean with long neck and micro 3D curved surface.
  • Perform excellent lubrication effect and high wear resistance with Nano multilayer coating.
  • High precision R value and available with complete size range.
  • Workable for various steel materials and copper electrode materials.
  • 刀具材料3
  • 塗層種類4
  • 螺旋角 2-2
  • 刀具刃數3-1
  • Nr5
  • 切削邊緣4
  • 機械加工方式 1-1
  • 機械加工方式 1-5
  • 機械加工方式 3-1
  • 機械加工方式 3-2
Inquiry Download
PREV NEXT

Hardened Steel 40-70HRC

P H M K N S

Work Material

H
GR5 GR6 GR7
38~48HRC Hardened Steel 48~56HRC Hardened Steel 56~68HRC Hardened Steel

Product Specification

Product Filter
Dc
R
Lc
L
d
L1
z
Dc R Lc L d L1 D1 z
0 -0.02 ±0.005 mm mm h5 mm mm
1 R0.1 0.8 50 4 4 0.95 4
1 R0.1 0.8 50 4 6 0.95 4
1 R0.1 0.8 50 4 8 0.95 4
1 R0.1 0.8 50 4 10 0.95 4
1 R0.1 0.8 50 4 12 0.95 4
1 R0.2 0.8 50 4 4 0.95 4
1 R0.2 0.8 50 4 6 0.95 4
1 R0.2 0.8 50 4 8 0.95 4
1 R0.2 0.8 50 4 10 0.95 4
1 R0.2 0.8 50 4 12 0.95 4
1 R0.3 0.8 50 4 4 0.95 4
1 R0.3 0.8 50 4 6 0.95 4
1 R0.3 0.8 50 4 8 0.95 4
1 R0.3 0.8 50 4 10 0.95 4
1 R0.3 0.8 50 4 12 0.95 4
1.5 R0.1 1.2 50 4 4 1.45 4
1.5 R0.1 1.2 50 4 6 1.45 4
1.5 R0.1 1.2 50 4 8 1.45 4
1.5 R0.1 1.2 50 4 10 1.45 4
1.5 R0.1 1.2 50 4 12 1.45 4
1.5 R0.1 1.2 50 4 16 1.45 4
1.5 R0.2 1.2 50 4 4 1.45 4
1.5 R0.2 1.2 50 4 6 1.45 4
1.5 R0.2 1.2 50 4 8 1.45 4
1.5 R0.2 1.2 50 4 12 1.45 4
1.5 R0.2 1.2 50 4 16 1.45 4
1.5 R0.3 1.2 50 4 4 1.45 4
1.5 R0.3 1.2 50 4 6 1.45 4
1.5 R0.3 1.2 50 4 8 1.45 4
1.5 R0.3 1.2 50 4 12 1.45 4
1.5 R0.3 1.2 50 4 16 1.45 4
2 R0.1 1.6 50 4 6 1.95 4
2 R0.1 1.6 50 4 8 1.95 4
2 R0.1 1.6 50 4 12 1.95 4
2 R0.1 1.6 50 4 16 1.95 4
2 R0.1 1.6 60 4 20 1.95 4
2 R0.2 1.6 50 4 6 1.95 4
2 R0.2 1.6 50 4 8 1.95 4
2 R0.2 1.6 50 4 12 1.95 4
2 R0.2 1.6 50 4 16 1.95 4
2 R0.2 1.6 60 4 20 1.95 4
2 R0.3 1.6 50 4 6 1.95 4
2 R0.3 1.6 50 4 8 1.95 4
2 R0.3 1.6 50 4 12 1.95 4
2 R0.3 1.6 50 4 16 1.95 4
2 R0.3 1.6 60 4 20 1.95 4
2 R0.5 1.6 50 4 6 1.95 4
2 R0.5 1.6 50 4 8 1.95 4
2 R0.5 1.6 50 4 12 1.95 4
2 R0.5 1.6 50 4 16 1.95 4
2 R0.5 1.6 60 4 20 1.95 4
3 R0.1 2.5 50 6 8 2.85 4
3 R0.1 2.5 50 6 12 2.85 4
3 R0.1 2.5 60 6 16 2.85 4
3 R0.1 2.5 60 6 20 2.85 4
3 R0.1 2.5 70 6 25 2.85 4
3 R0.1 2.5 70 6 30 2.85 4
3 R0.2 2.5 50 6 8 2.85 4
3 R0.2 2.5 50 6 12 2.85 4
3 R0.2 2.5 60 6 16 2.85 4
3 R0.2 2.5 60 6 20 2.85 4
3 R0.2 2.5 70 6 25 2.85 4
3 R0.2 2.5 70 6 30 2.85 4
3 R0.3 2.5 50 6 8 2.85 4
3 R0.3 2.5 50 6 12 2.85 4
3 R0.3 2.5 60 6 16 2.85 4
3 R0.3 2.5 60 6 20 2.85 4
3 R0.3 2.5 70 6 25 2.85 4
3 R0.3 2.5 70 6 30 2.85 4
3 R0.5 2.5 50 6 8 2.85 4
3 R0.5 2.5 50 6 12 2.85 4
3 R0.5 2.5 60 6 16 2.85 4
3 R0.5 2.5 60 6 20 2.85 4
3 R0.5 2.5 70 6 25 2.85 4
3 R0.5 2.5 70 6 30 2.85 4
4 R0.1 4 60 6 12 3.85 4
4 R0.1 4 60 6 16 3.85 4
4 R0.1 4 70 6 20 3.85 4
4 R0.1 4 80 6 30 3.85 4
4 R0.1 4 90 6 40 3.85 4
4 R0.2 4 60 6 12 3.85 4
4 R0.2 4 60 6 16 3.85 4
4 R0.2 4 70 6 20 3.85 4
4 R0.2 4 80 6 30 3.85 4
4 R0.2 4 90 6 40 3.85 4
4 R0.3 4 60 6 12 3.85 4
4 R0.3 4 60 6 16 3.85 4
4 R0.3 4 70 6 20 3.85 4
4 R0.3 4 80 6 30 3.85 4
4 R0.3 4 90 6 40 3.85 4
4 R0.5 4 60 6 12 3.85 4
4 R0.5 4 60 6 16 3.85 4
4 R0.5 4 70 6 20 3.85 4
4 R0.5 4 80 6 30 3.85 4
4 R0.5 4 90 6 40 3.85 4
4 R1 4 60 6 12 3.85 4
4 R1 4 60 6 16 3.85 4
4 R1 4 70 6 20 3.85 4
4 R1 4 80 6 30 3.85 4
4 R1 4 90 6 40 3.85 4
5 R0.2 5 70 6 20 4.85 4
5 R0.2 5 90 6 40 4.85 4
5 R0.3 5 70 6 20 4.85 4
5 R0.3 5 90 6 40 4.85 4
5 R0.5 5 70 6 20 4.85 4
5 R0.5 5 90 6 40 4.85 4
5 R1 5 70 6 20 4.85 4
5 R1 5 90 6 40 4.85 4
6 R0.2 6 80 6 36 5.85 4
6 R0.2 6 100 6 54 5.85 4
6 R0.3 6 80 6 36 5.85 4
6 R0.3 6 100 6 54 5.85 4
6 R0.5 6 80 6 36 5.85 4
6 R0.5 6 100 6 54 5.85 4
6 R1 6 80 6 36 5.85 4
6 R1 6 100 6 54 5.85 4
