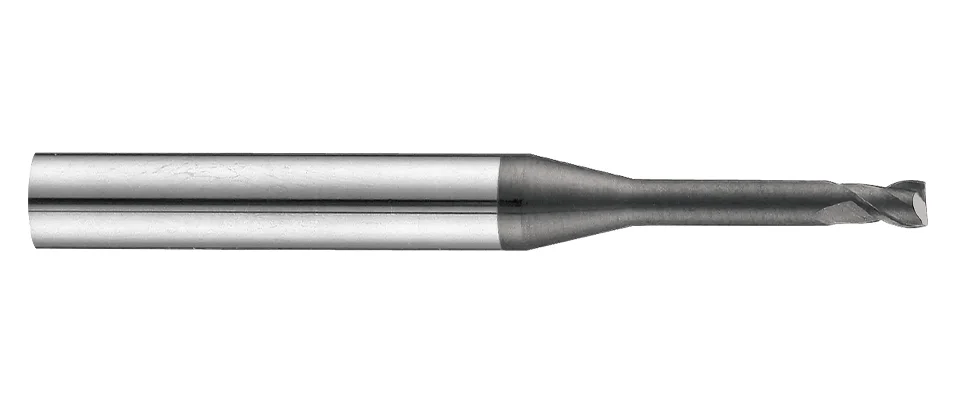

G697DC End Mills For Graphite

METRIC ASIA
  • End Mills for Graphite
  • Apply with high hardness diamond coating and have a good wear resistance.
  • Keep lower wear condition level in high speed processing.
  • Suitable for corner angle cleaning processing of graphite electrodes.
  • MG carbide
  • 塗層種類8
  • 螺旋角 2-2
  • 刀具刃數1-1
  • N 10度 - 3頁
  • 切削邊緣4
  • 機械加工方式 1-1
  • 機械加工方式 1-5
  • 機械加工方式 3-1
  • 機械加工方式 3-2
Inquiry Download
PREV NEXT

Graphite

P H M K N S

Work Material

N
GR14
Graphite

Product Specification

Product Filter
Dc
R
Lc
L
d
L1
z
Dc R Lc L d L1 D1 z
0 -0.02 ±0.01 mm mm h5 mm mm
0.5 R0.1 0.9 50 4 5 0.45 2
0.5 R0.1 0.9 50 4 10 0.45 2
0.5 R0.1 0.9 60 4 15 0.45 2
0.5 R0.1 0.9 60 4 20 0.45 2
1 R0.2 1.5 50 4 5 0.95 2
1 R0.2 1.5 50 4 10 0.95 2
1 R0.2 1.5 60 4 15 0.95 2
1 R0.2 1.5 60 4 20 0.95 2
1 R0.2 1.5 80 4 30 0.95 2
1.5 R0.2 2.3 60 4 5 1.45 2
1.5 R0.2 2.3 60 4 10 1.45 2
1.5 R0.2 2.3 60 4 15 1.45 2
1.5 R0.2 2.3 60 4 20 1.45 2
1.5 R0.2 2.3 80 4 30 1.45 2
1.5 R0.2 2.3 80 4 40 1.45 2
2 R0.2 3 60 4 5 1.95 2
2 R0.2 3 60 4 10 1.95 2
2 R0.2 3 60 4 15 1.95 2
2 R0.2 3 60 4 20 1.95 2
2 R0.2 3 80 4 30 1.95 2
2 R0.2 3 80 4 40 1.95 2
2 R0.2 3 100 4 60 1.95 2
3 R0.2 4.5 60 4 10 2.85 2
3 R0.2 4.5 60 4 20 2.85 2
3 R0.2 4.5 80 4 40 2.85 2
3 R0.2 4.5 100 4 60 2.85 2
4 R0.2 6 60 4 20 3.85 2
4 R0.2 6 80 4 40 3.85 2
4 R0.2 6 120 4 60 3.85 2
