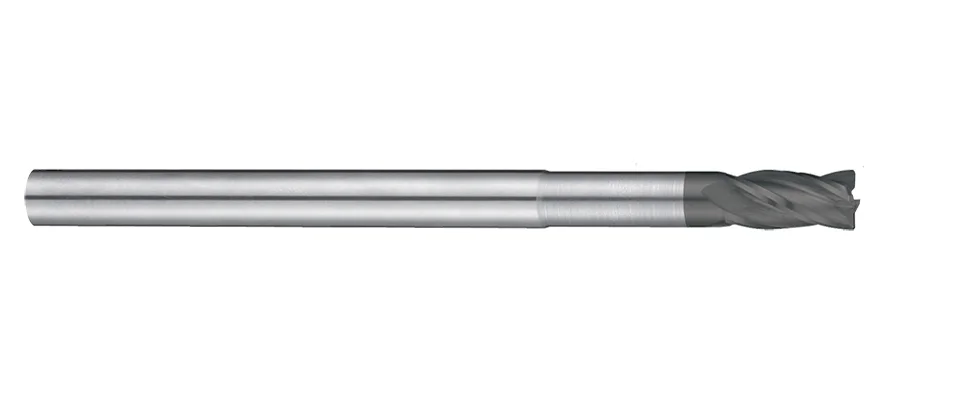

G298DC End Mills For Graphite

METRIC ASIA
  • End Mills for Graphite- Long Length
  • Apply with high hardness diamond coating and have a good wear resistance.
  • Keep lower wear condition level in high speed processing.
  • Application for graphite cutting.
  • MG carbide
  • 塗層種類8
  • 螺旋角 2-2
  • 刀具刃數3-1
  • N 10度 - 3頁
  • 切削邊緣4
  • 機械加工方式 1-1
  • 機械加工方式 1-5
  • 機械加工方式 3-1
  • 機械加工方式 3-2
Inquiry Download
PREV NEXT

Graphite

P H M K N S

Work Material

N
GR14
Graphite

Product Specification

Product Filter
Dc
R
Lc
L
d
L1
z
Dc R Lc L d L1 D1 z
0 -0.03 ±0.01 mm mm h5 mm mm
4 R0.5 8 80 4 20 3.85 4
6 R0.5 12 100 6 30 5.7 4
8 R0.5 16 120 8 40 7.6 4
10 R0.5 20 140 10 50 9.5 4
12 R0.5 24 160 12 60 11.4 4
