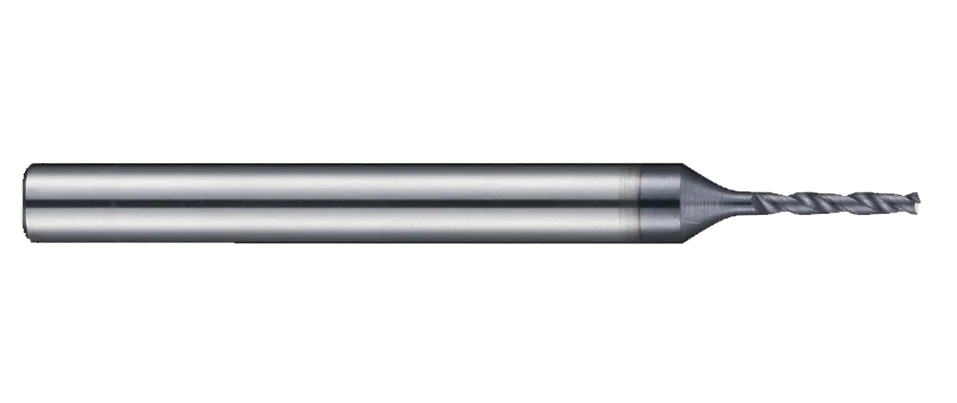

D420HX-8 Micro Precision Drills
METRIC
ASIA
- Micro Precision Drills
- 140° X-shape drill tip design which included sharp and strength.
- Dc. range from 0.1 to 2.0mm with every 0.01mm as size range.
- Good wear resistance and lubrication with Nano multilayer coating.
- Suitable for drilling application with Steels which is under HRC30, Stainless Steels, Cast Iron, Aluminium, Copper…etc.
Steel < 30HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | M | K | N | ||||
|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR8 | GR9 | GR10 | GR11 | GR12 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Plastics |
Product Specification
| Dc | Lc | L | d |
|---|---|---|---|
| 0 -0.05 | mm | mm | h6 |
| 0.1 | 1.2 | 38 | 3 |
| 0.11 | 1.2 | 38 | 3 |
| 0.12 | 1.4 | 38 | 3 |
| 0.13 | 1.4 | 38 | 3 |
| 0.14 | 1.4 | 38 | 3 |
| 0.15 | 1.8 | 38 | 3 |
| 0.16 | 1.8 | 38 | 3 |
| 0.17 | 1.8 | 38 | 3 |
| 0.18 | 2.1 | 38 | 3 |
| 0.19 | 2.1 | 38 | 3 |
| 0.2 | 2.4 | 38 | 3 |
| 0.21 | 2.4 | 38 | 3 |
| 0.22 | 2.6 | 38 | 3 |
| 0.23 | 2.6 | 38 | 3 |
| 0.24 | 2.6 | 38 | 3 |
| 0.25 | 3 | 38 | 3 |
| 0.26 | 3 | 38 | 3 |
| 0.27 | 3 | 38 | 3 |
| 0.28 | 3.3 | 38 | 3 |
| 0.29 | 3.3 | 38 | 3 |
| 0.3 | 5 | 38 | 3 |
| 0.31 | 5 | 38 | 3 |
| 0.32 | 5 | 38 | 3 |
| 0.33 | 5 | 38 | 3 |
| 0.34 | 5 | 38 | 3 |
| 0.35 | 5 | 38 | 3 |
| 0.36 | 5 | 38 | 3 |
| 0.37 | 5 | 38 | 3 |
| 0.38 | 5 | 38 | 3 |
| 0.39 | 5 | 38 | 3 |
| 0.4 | 6 | 38 | 3 |
| 0.41 | 6 | 38 | 3 |
| 0.42 | 6 | 38 | 3 |
| 0.43 | 6 | 38 | 3 |
| 0.44 | 6 | 38 | 3 |
| 0.45 | 6 | 38 | 3 |
| 0.46 | 6 | 38 | 3 |
| 0.47 | 6 | 38 | 3 |
| 0.48 | 6 | 38 | 3 |
| 0.49 | 6 | 38 | 3 |
| 0.5 | 6 | 42 | 3 |
| 0.51 | 6 | 42 | 3 |
| 0.52 | 6 | 42 | 3 |
| 0.53 | 6 | 42 | 3 |
| 0.54 | 6.6 | 42 | 3 |
| 0.55 | 6.6 | 42 | 3 |
| 0.56 | 7.2 | 42 | 3 |
| 0.57 | 7.2 | 42 | 3 |
| 0.58 | 7.2 | 42 | 3 |
| 0.59 | 7.2 | 42 | 3 |
| 0.6 | 7.2 | 42 | 3 |
| 0.61 | 7.8 | 46 | 3 |
| 0.62 | 7.8 | 46 | 3 |
| 0.63 | 7.8 | 46 | 3 |
| 0.64 | 7.8 | 46 | 3 |
| 0.65 | 7.8 | 46 | 3 |
| 0.66 | 7.8 | 46 | 3 |
| 0.67 | 7.8 | 46 | 3 |
| 0.68 | 8.4 | 46 | 3 |
| 0.69 | 8.4 | 46 | 3 |
| 0.7 | 8.4 | 46 | 3 |
| 0.71 | 9 | 46 | 3 |
| 0.72 | 9 | 46 | 3 |
| 0.73 | 9 | 46 | 3 |
| 0.74 | 9 | 46 | 3 |
| 0.75 | 9 | 46 | 3 |
| 0.76 | 9.6 | 46 | 3 |
| 0.77 | 9.6 | 46 | 3 |
| 0.78 | 9.6 | 46 | 3 |
| 0.79 | 9.6 | 46 | 3 |
| 0.8 | 9.6 | 46 | 3 |
| 0.81 | 10.2 | 46 | 3 |
| 0.82 | 10.2 | 46 | 3 |
| 0.83 | 10.2 | 46 | 3 |
| 0.84 | 10.2 | 46 | 3 |
| 0.85 | 10.2 | 46 | 3 |
| 0.86 | 10.8 | 46 | 3 |
| 0.87 | 10.8 | 46 | 3 |
| 0.88 | 10.8 | 46 | 3 |
| 0.89 | 10.8 | 46 | 3 |
| 0.9 | 10.8 | 46 | 3 |
| 0.91 | 11.4 | 46 | 3 |
| 0.92 | 11.4 | 46 | 3 |
| 0.93 | 11.4 | 46 | 3 |
| 0.94 | 11.4 | 46 | 3 |
| 0.95 | 11.4 | 46 | 3 |
| 0.96 | 12 | 46 | 3 |
| 0.97 | 12 | 46 | 3 |
| 0.98 | 12 | 46 | 3 |
| 0.99 | 12 | 46 | 3 |
| 1 | 12 | 46 | 3 |
| 1.01 | 12.6 | 50 | 3 |
| 1.02 | 12.6 | 50 | 3 |
| 1.03 | 12.6 | 50 | 3 |
| 1.04 | 12.6 | 50 | 3 |
| 1.05 | 12.6 | 50 | 3 |
| 1.06 | 12.6 | 50 | 3 |
| 1.07 | 13.2 | 50 | 3 |
| 1.08 | 13.2 | 50 | 3 |
| 1.09 | 13.2 | 50 | 3 |
| 1.1 | 13.2 | 50 | 3 |
| 1.11 | 13.8 | 50 | 3 |
| 1.12 | 13.8 | 50 | 3 |
| 1.13 | 13.8 | 50 | 3 |
| 1.14 | 13.8 | 50 | 3 |
| 1.15 | 13.8 | 50 | 3 |
| 1.16 | 13.8 | 50 | 3 |
| 1.17 | 13.8 | 50 | 3 |
| 1.18 | 13.8 | 50 | 3 |
| 1.19 | 14.4 | 50 | 3 |
| 1.2 | 14.4 | 50 | 3 |
| 1.21 | 15 | 50 | 3 |
| 1.22 | 15 | 50 | 3 |
| 1.23 | 15 | 50 | 3 |
| 1.24 | 15 | 50 | 3 |
| 1.25 | 15 | 50 | 3 |
| 1.26 | 15.6 | 50 | 3 |
| 1.27 | 15.6 | 50 | 3 |
| 1.28 | 15.6 | 50 | 3 |
| 1.29 | 15.6 | 50 | 3 |
| 1.3 | 15.6 | 50 | 3 |
| 1.31 | 16.2 | 54 | 3 |
| 1.32 | 16.2 | 54 | 3 |
| 1.33 | 16.2 | 54 | 3 |
| 1.34 | 16.2 | 54 | 3 |
| 1.35 | 16.2 | 54 | 3 |
| 1.36 | 16.8 | 54 | 3 |
| 1.37 | 16.8 | 54 | 3 |
| 1.38 | 16.8 | 54 | 3 |
| 1.39 | 16.8 | 54 | 3 |
| 1.4 | 16.8 | 54 | 3 |
| 1.41 | 17.4 | 54 | 3 |
| 1.42 | 17.4 | 54 | 3 |
| 1.43 | 17.4 | 54 | 3 |
| 1.44 | 17.4 | 54 | 3 |
| 1.45 | 17.4 | 54 | 3 |
| 1.46 | 18 | 54 | 3 |
| 1.47 | 18 | 54 | 3 |
| 1.48 | 18 | 54 | 3 |
| 1.49 | 18 | 54 | 3 |
| 1.5 | 18 | 54 | 3 |
| 1.51 | 18.6 | 54 | 3 |
| 1.52 | 18.6 | 54 | 3 |
| 1.53 | 18.6 | 54 | 3 |
| 1.54 | 18.6 | 54 | 3 |
| 1.55 | 18.6 | 54 | 3 |
| 1.56 | 19.2 | 54 | 3 |
| 1.57 | 19.2 | 54 | 3 |
| 1.58 | 19.2 | 54 | 3 |
| 1.59 | 19.2 | 54 | 3 |
| 1.6 | 19.2 | 54 | 3 |
| 1.61 | 19.8 | 58 | 3 |
| 1.62 | 19.8 | 58 | 3 |
| 1.63 | 19.8 | 58 | 3 |
| 1.64 | 19.8 | 58 | 3 |
| 1.65 | 19.8 | 58 | 3 |
| 1.66 | 20.4 | 58 | 3 |
| 1.67 | 20.4 | 58 | 3 |
| 1.68 | 20.4 | 58 | 3 |
| 1.69 | 20.4 | 58 | 3 |
| 1.7 | 20.4 | 58 | 3 |
| 1.71 | 21 | 58 | 3 |
| 1.72 | 21 | 58 | 3 |
| 1.73 | 21 | 58 | 3 |
| 1.74 | 21 | 58 | 3 |
| 1.75 | 21 | 58 | 3 |
| 1.76 | 21.6 | 58 | 3 |
| 1.77 | 21.6 | 58 | 3 |
| 1.78 | 21.6 | 58 | 3 |
| 1.79 | 21.6 | 58 | 3 |
| 1.8 | 21.6 | 58 | 3 |
| 1.81 | 22.2 | 58 | 3 |
| 1.82 | 22.2 | 58 | 3 |
| 1.83 | 22.2 | 58 | 3 |
| 1.84 | 22.2 | 58 | 3 |
| 1.85 | 22.2 | 58 | 3 |
| 1.86 | 22.8 | 58 | 3 |
| 1.87 | 22.8 | 58 | 3 |
| 1.88 | 22.8 | 58 | 3 |
| 1.89 | 22.8 | 58 | 3 |
| 1.9 | 22.8 | 58 | 3 |
| 1.91 | 23.4 | 58 | 3 |
| 1.92 | 23.4 | 58 | 3 |
| 1.93 | 23.4 | 58 | 3 |
| 1.94 | 23.4 | 58 | 3 |
| 1.95 | 23.4 | 58 | 3 |
| 1.96 | 24 | 58 | 3 |
| 1.97 | 24 | 58 | 3 |
| 1.98 | 24 | 58 | 3 |
| 1.99 | 24 | 58 | 3 |
| 2.0 | 24 | 58 | 3 |
| 2.01 | 24.6 | 62 | 3 |
| 2.02 | 24.6 | 62 | 3 |
| 2.03 | 24.6 | 62 | 3 |
| 2.04 | 24.6 | 62 | 3 |
| 2.05 | 24.6 | 62 | 3 |
| 2.06 | 25.2 | 62 | 3 |
| 2.07 | 25.2 | 62 | 3 |
| 2.08 | 25.2 | 62 | 3 |
| 2.09 | 25.2 | 62 | 3 |
| 2.1 | 25.2 | 62 | 3 |
| 2.11 | 25.8 | 62 | 3 |
| 2.12 | 25.8 | 62 | 3 |
| 2.13 | 25.8 | 62 | 3 |
| 2.14 | 25.8 | 62 | 3 |
| 2.15 | 25.8 | 62 | 3 |
| 2.16 | 26.4 | 62 | 3 |
| 2.17 | 26.4 | 62 | 3 |
| 2.18 | 26.4 | 62 | 3 |
| 2.19 | 26.4 | 62 | 3 |
| 2.2 | 26.4 | 62 | 3 |
| 2.21 | 27 | 62 | 3 |
| 2.22 | 27 | 62 | 3 |
| 2.23 | 27 | 62 | 3 |
| 2.24 | 27 | 62 | 3 |
| 2.25 | 27 | 62 | 3 |
| 2.26 | 27.6 | 62 | 3 |
| 2.27 | 27.6 | 62 | 3 |
| 2.28 | 27.6 | 62 | 3 |
| 2.29 | 27.6 | 62 | 3 |
| 2.3 | 27.6 | 62 | 3 |
| 2.31 | 28.2 | 62 | 3 |
| 2.32 | 28.2 | 62 | 3 |
| 2.33 | 28.2 | 62 | 3 |
| 2.34 | 28.2 | 62 | 3 |
| 2.35 | 28.2 | 62 | 3 |
| 2.36 | 28.2 | 62 | 3 |
| 2.37 | 28.8 | 62 | 3 |
| 2.38 | 28.8 | 62 | 3 |
| 2.39 | 28.8 | 62 | 3 |
| 2.4 | 28.8 | 62 | 3 |
| 2.41 | 29.4 | 66 | 3 |
| 2.42 | 29.4 | 66 | 3 |
| 2.43 | 29.4 | 66 | 3 |
| 2.44 | 29.4 | 66 | 3 |
| 2.45 | 29.4 | 66 | 3 |
| 2.46 | 30 | 66 | 3 |
| 2.47 | 30 | 66 | 3 |
| 2.48 | 30 | 66 | 3 |
| 2.49 | 30 | 66 | 3 |
| 2.5 | 30 | 66 | 3 |
| 2.51 | 30.6 | 66 | 3 |
| 2.52 | 30.6 | 66 | 3 |
| 2.53 | 30.6 | 66 | 3 |
| 2.54 | 30.6 | 66 | 3 |
| 2.55 | 30.6 | 66 | 3 |
| 2.56 | 31.2 | 66 | 3 |
| 2.57 | 31.2 | 66 | 3 |
| 2.58 | 31.2 | 66 | 3 |
| 2.59 | 31.2 | 66 | 3 |
| 2.6 | 31.2 | 66 | 3 |
| 2.61 | 31.8 | 66 | 3 |
| 2.62 | 31.8 | 66 | 3 |
| 2.63 | 31.8 | 66 | 3 |
| 2.64 | 31.8 | 66 | 3 |
| 2.65 | 31.8 | 66 | 3 |
| 2.66 | 32.4 | 66 | 3 |
| 2.67 | 32.4 | 66 | 3 |
| 2.68 | 32.4 | 66 | 3 |
| 2.69 | 32.4 | 66 | 3 |
| 2.7 | 32.4 | 66 | 3 |
| 2.71 | 33 | 66 | 3 |
| 2.72 | 33 | 66 | 3 |
| 2.73 | 33 | 66 | 3 |
| 2.74 | 33 | 66 | 3 |
| 2.75 | 33 | 66 | 3 |
| 2.76 | 33.6 | 66 | 3 |
| 2.77 | 33.6 | 66 | 3 |
| 2.78 | 33.6 | 66 | 3 |
| 2.79 | 33.6 | 66 | 3 |
| 2.8 | 33.6 | 66 | 3 |
| 2.81 | 34.2 | 66 | 3 |
| 2.82 | 34.2 | 66 | 3 |
| 2.83 | 34.2 | 66 | 3 |
| 2.84 | 34.2 | 66 | 3 |
| 2.85 | 34.2 | 66 | 3 |
| 2.86 | 34.8 | 66 | 3 |
| 2.87 | 34.8 | 66 | 3 |
| 2.88 | 34.8 | 66 | 3 |
| 2.89 | 34.8 | 66 | 3 |
| 2.9 | 34.8 | 66 | 3 |
| 2.91 | 35.4 | 66 | 3 |
| 2.92 | 35.4 | 66 | 3 |
| 2.93 | 35.4 | 66 | 3 |
| 2.94 | 35.4 | 66 | 3 |
| 2.95 | 35.4 | 66 | 3 |
| 2.96 | 36 | 66 | 3 |
| 2.97 | 36 | 66 | 3 |
| 2.98 | 36 | 66 | 3 |
| 2.99 | 36 | 66 | 3 |
| 3 | 36 | 66 | 3 |
