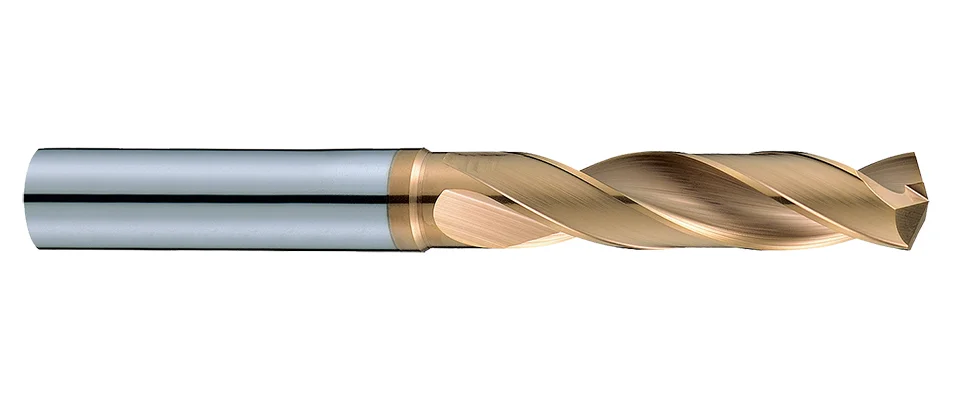

D421TX High Performance Drills
METRIC
ASIA
- JIS 3XD Drills
- 140° S-shape drill tip design to reduce axial force.
- Design with groove shape to provide higher chip removal rates.
- Good wear resistance and lubrication with Nano multilayer coating.
- Application for drilling with Steels which under HRC48, Cast Iron, Aluminium…etc.
- Suitable for drilling with 3XD depth.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | S | |||||
---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
Dc | Lc | L | d |
---|---|---|---|
h7 | mm | mm | h6 |
1 | 6 | 50 | 3 |
1.1 | 6 | 50 | 3 |
1.2 | 6 | 50 | 3 |
1.3 | 6 | 50 | 3 |
1.4 | 6 | 50 | 3 |
1.5 | 6 | 50 | 3 |
1.6 | 8 | 50 | 3 |
1.7 | 8 | 50 | 3 |
1.8 | 8 | 50 | 3 |
1.9 | 8 | 50 | 3 |
2 | 8 | 50 | 3 |
2.1 | 10 | 62 | 3 |
2.2 | 10 | 62 | 3 |
2.3 | 10 | 62 | 3 |
2.4 | 10 | 62 | 3 |
2.5 | 10 | 62 | 3 |
2.6 | 13 | 62 | 3 |
2.7 | 13 | 62 | 3 |
2.8 | 13 | 62 | 3 |
2.9 | 13 | 62 | 3 |
3 | 13 | 62 | 3 |
3.1 | 19 | 66 | 4 |
3.2 | 19 | 66 | 4 |
3.3 | 19 | 66 | 4 |
3.4 | 19 | 66 | 4 |
3.5 | 19 | 66 | 4 |
3.6 | 21 | 66 | 4 |
3.7 | 21 | 66 | 4 |
3.8 | 21 | 66 | 4 |
3.9 | 21 | 66 | 4 |
4 | 21 | 66 | 4 |
4.1 | 23 | 66 | 5 |
4.2 | 23 | 66 | 5 |
4.3 | 23 | 66 | 5 |
4.4 | 23 | 66 | 5 |
4.5 | 23 | 66 | 5 |
4.6 | 25 | 66 | 5 |
4.7 | 25 | 66 | 5 |
4.8 | 25 | 66 | 5 |
4.9 | 25 | 66 | 5 |
5 | 25 | 66 | 5 |
5.1 | 28 | 66 | 6 |
5.2 | 28 | 66 | 6 |
5.3 | 28 | 66 | 6 |
5.4 | 28 | 66 | 6 |
5.5 | 28 | 66 | 6 |
5.6 | 28 | 66 | 6 |
5.7 | 28 | 66 | 6 |
5.8 | 28 | 66 | 6 |
5.9 | 28 | 66 | 6 |
6 | 28 | 66 | 6 |
6.1 | 34 | 79 | 7 |
6.2 | 34 | 79 | 7 |
6.3 | 34 | 79 | 7 |
6.4 | 34 | 79 | 7 |
6.5 | 34 | 79 | 7 |
6.6 | 34 | 79 | 7 |
6.7 | 34 | 79 | 7 |
6.8 | 34 | 79 | 7 |
6.9 | 34 | 79 | 7 |
7 | 34 | 79 | 7 |
7.1 | 41 | 79 | 8 |
7.2 | 41 | 79 | 8 |
7.3 | 41 | 79 | 8 |
7.4 | 41 | 79 | 8 |
7.5 | 41 | 79 | 8 |
7.6 | 41 | 79 | 8 |
7.7 | 41 | 79 | 8 |
7.8 | 41 | 79 | 8 |
7.9 | 41 | 79 | 8 |
8 | 41 | 79 | 8 |
8.1 | 47 | 89 | 9 |
8.2 | 47 | 89 | 9 |
8.3 | 47 | 89 | 9 |
8.4 | 47 | 89 | 9 |
8.5 | 47 | 89 | 9 |
8.6 | 47 | 89 | 9 |
8.7 | 47 | 89 | 9 |
8.8 | 47 | 89 | 9 |
8.9 | 47 | 89 | 9 |
9 | 47 | 89 | 9 |
9.1 | 47 | 89 | 10 |
9.2 | 47 | 89 | 10 |
9.3 | 47 | 89 | 10 |
9.4 | 47 | 89 | 10 |
9.5 | 47 | 89 | 10 |
9.6 | 47 | 89 | 10 |
9.7 | 47 | 89 | 10 |
9.8 | 47 | 89 | 10 |
9.9 | 47 | 89 | 10 |
10 | 47 | 89 | 10 |
10.1 | 55 | 102 | 11 |
10.2 | 55 | 102 | 11 |
10.3 | 55 | 102 | 11 |
10.4 | 55 | 102 | 11 |
10.5 | 55 | 102 | 11 |
10.6 | 55 | 102 | 11 |
10.7 | 55 | 102 | 11 |
10.8 | 55 | 102 | 11 |
10.9 | 55 | 102 | 11 |
11 | 55 | 102 | 11 |
11.1 | 55 | 102 | 12 |
11.2 | 55 | 102 | 12 |
11.3 | 55 | 102 | 12 |
11.4 | 55 | 102 | 12 |
11.5 | 55 | 102 | 12 |
11.6 | 55 | 102 | 12 |
11.7 | 55 | 102 | 12 |
11.8 | 55 | 102 | 12 |
11.9 | 55 | 102 | 12 |
12 | 55 | 102 | 12 |
12.5 | 60 | 107 | 13 |
13 | 60 | 107 | 13 |
13.5 | 60 | 107 | 14 |
14 | 60 | 107 | 14 |
14.5 | 65 | 115 | 15 |
15 | 65 | 115 | 15 |
15.5 | 65 | 115 | 16 |
16 | 65 | 115 | 16 |
