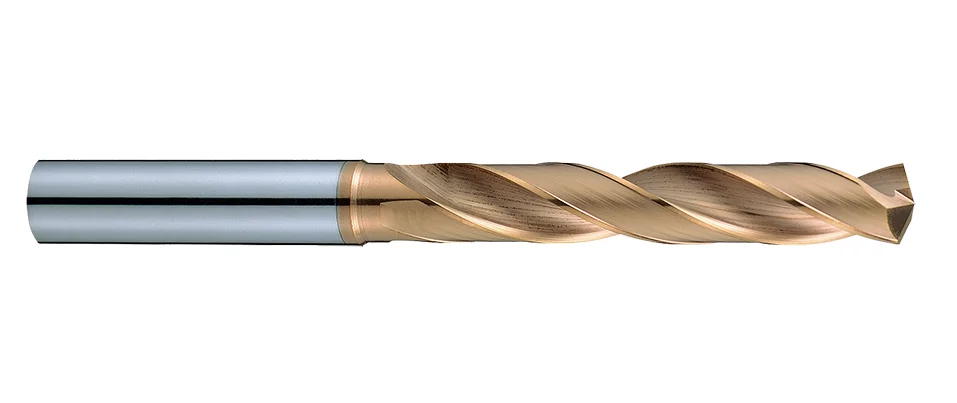

D422TX High Performance Drills

METRIC ASIA
  • JIS 5XD Drills
  • 140° S-shape drill tip design to reduce axial force.
  • Design with groove shape to provide higher chip removal rates.
  • Good wear resistance and lubrication with Nano multilayer coating.
  • Application for drilling with Steels which under HRC48, Cast Iron, Aluminium…etc.
  • Suitable for drilling with 5XD depth.
  • MG carbide
  • 塗層種類4
  • 5XD
  • 刀具刃數3-6
  • 夾角140度
Inquiry Donwload
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K S
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Dc
Lc
L
d
Dc Lc L d
h7 mm mm h6
1 12 62 3
1.1 12 62 3
1.2 12 62 3
1.3 12 62 3
1.4 12 62 3
1.5 12 62 3
1.6 15 62 3
1.7 15 62 3
1.8 15 62 3
1.9 15 62 3
2 15 62 3
2.1 18 66 3
2.2 18 66 3
2.3 18 66 3
2.4 18 66 3
2.5 18 66 3
2.6 20 66 3
2.7 20 66 3
2.8 20 66 3
2.9 20 66 3
3 20 66 3
3.1 24 74 4
3.2 24 74 4
3.3 24 74 4
3.4 24 74 4
3.5 24 74 4
3.6 28 74 4
3.7 28 74 4
3.8 28 74 4
3.9 28 74 4
4 28 74 4
4.1 32 74 5
4.2 32 74 5
4.3 32 74 5
4.4 32 74 5
4.5 32 74 5
4.6 38 74 5
4.7 38 74 5
4.8 38 74 5
4.9 38 74 5
5 38 74 5
5.1 44 82 6
5.2 44 82 6
5.3 44 82 6
5.4 44 82 6
5.5 44 82 6
5.6 44 82 6
5.7 44 82 6
5.8 44 82 6
5.9 44 82 6
6 44 82 6
6.1 53 91 7
6.2 53 91 7
6.3 53 91 7
6.4 53 91 7
6.5 53 91 7
6.6 53 91 7
6.7 53 91 7
6.8 53 91 7
6.9 53 91 7
7 53 91 7
7.1 53 91 8
7.2 53 91 8
7.3 53 91 8
7.4 53 91 8
7.5 53 91 8
7.6 53 91 8
7.7 53 91 8
7.8 53 91 8
7.9 53 91 8
8 53 91 8
8.1 61 103 9
8.2 61 103 9
8.3 61 103 9
8.4 61 103 9
8.5 61 103 9
8.6 61 103 9
8.7 61 103 9
8.8 61 103 9
8.9 61 103 9
9 61 103 9
9.1 61 103 10
9.2 61 103 10
9.3 61 103 10
9.4 61 103 10
9.5 61 103 10
9.6 61 103 10
9.7 61 103 10
9.8 61 103 10
9.9 61 103 10
10 61 103 10
10.1 71 118 11
10.2 71 118 11
10.3 71 118 11
10.4 71 118 11
10.5 71 118 11
10.6 71 118 11
10.7 71 118 11
10.8 71 118 11
10.9 71 118 11
11 71 118 11
11.1 71 118 12
11.2 71 118 12
11.3 71 118 12
11.4 71 118 12
11.5 71 118 12
11.6 71 118 12
11.7 71 118 12
11.8 71 118 12
11.9 71 118 12
12 71 118 12
12.5 77 124 13
13 77 124 13
13.5 77 124 14
14 77 124 14
14.5 83 133 15
15 83 133 15
15.5 83 133 16
16 83 133 16
