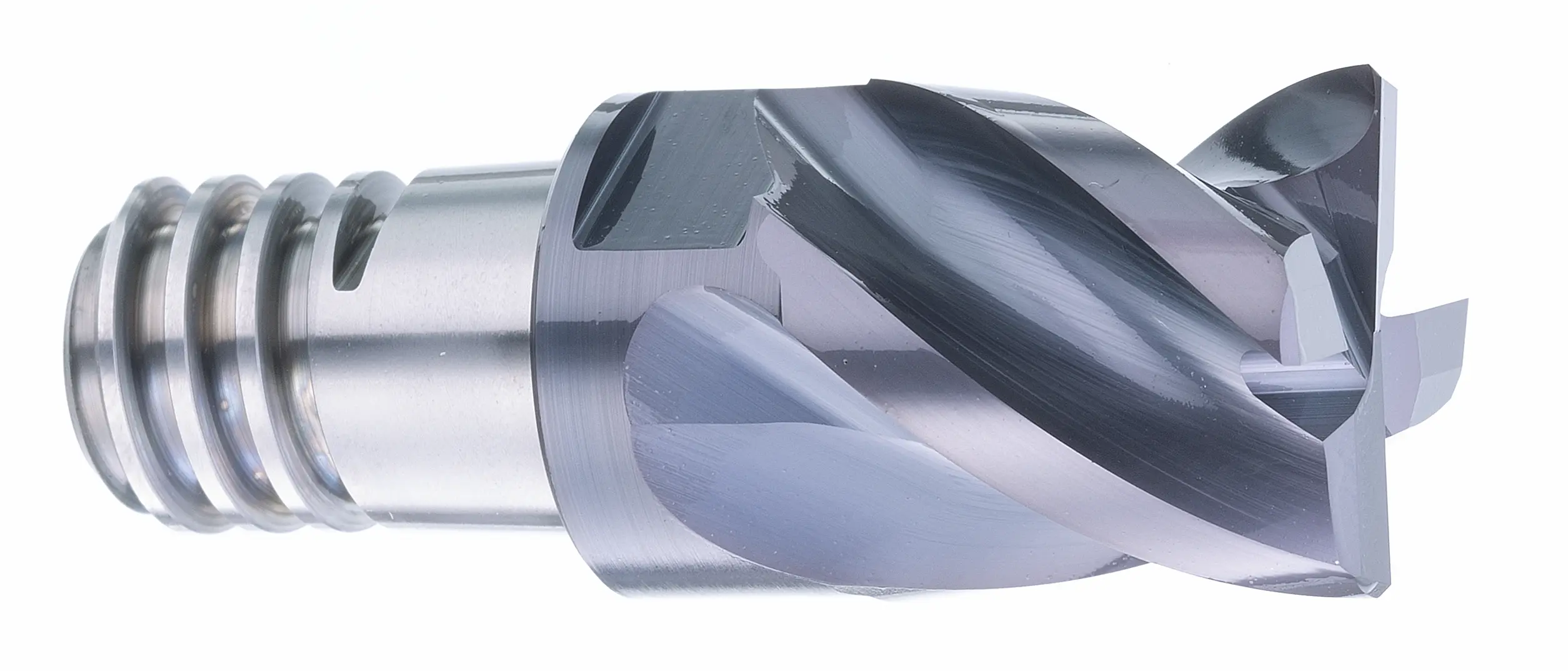

IMP..-E140FX Interchangeable Multi-Purpose End Mill Heads
METRIC
ASIA
- Multipurpose End Mills- 4 Flutes
- Effectively decrease the vibration by the designs of various helix geometry and unequal flutes.
- Big chip breaker is designed to reach high removal rate for various work materials.
- Nano multilayer coating AlCrN is suitable for carbon steel, alloy steel and stainless steel with impurities and sticky materials.
PREV
NEXT
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR11 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | Lc | L1 | D1 | C | z |
|---|---|---|---|---|---|---|
| 0-0.02 | mm | mm | mm | mm | ||
| IMP10-E140FX100010 | 10 | 10 | 16 | 9.7 | 0.25 | 4 |
| IMP12-E140FX120012 | 12 | 12 | 19 | 11.7 | 0.3 | 4 |
| IMP16-E140FX160016 | 16 | 16 | 24 | 15.5 | 0.4 | 4 |
| IMP20-E140FX200020 | 20 | 20 | 30 | 19.5 | 0.5 | 4 |
| IMP25-E140FX250025 | 25 | 25 | 37.5 | 24.5 | 0.6 | 4 |
