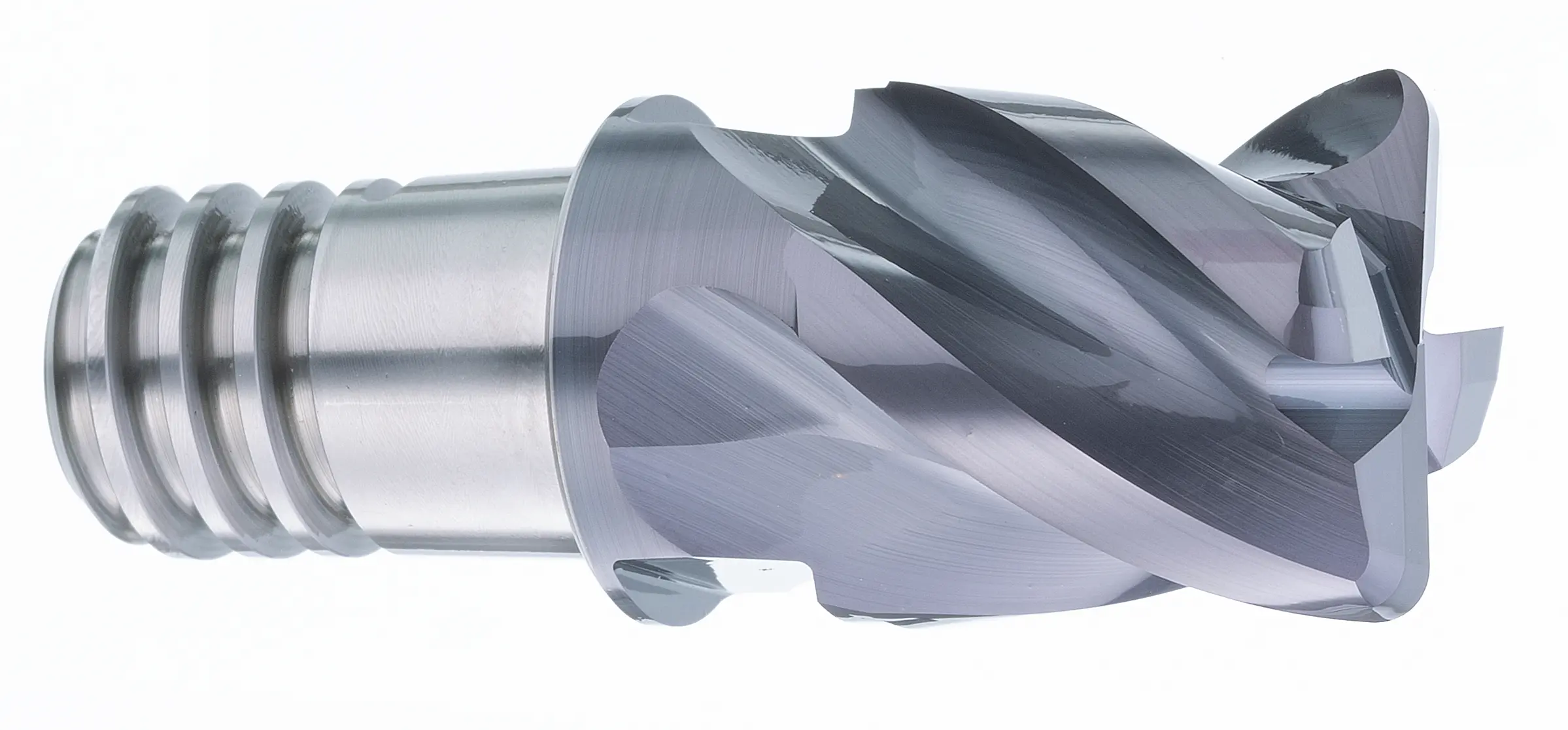

IMP..-B252FX Interchangeable Multipurpose End Mills With Corner Radius
METRIC
ASIA
- Multipurpose End Mills with Corner Radius- 4 Flutes
- Using UMG carbide material enable to enhance lubrication and wear resistance.
- Effectively decrease the vibration by various helix geometry and unequal flutes designs.
- Big chip breaker is designed to reach high removal rate for various work materials.
- Cutting edge with corner radius design and nano multilayer coating AlCrN are suitable for carbon steel, alloy steel and stainless steel with impurities and sticky materials.
- Suitable for various kinds of work materials from the end of roughing to finishing.
Steel < 56HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR6 | GR8 | GR9 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | 48~56HRC Hardened Steel | Stainless Steel | Cast Iron | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | R | Lc | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0-0.02 | ±0.01 | mm | mm | mm | ||
| IMP10-B252FX100010R05 | 10 | 0.5 | 10 | 16 | 9.7 | 4 |
| IMP10-B252FX100010R10 | 10 | 1 | 10 | 16 | 9.7 | 4 |
| IMP10-B252FX100010R20 | 10 | 2 | 10 | 16 | 9.7 | 4 |
| IMP10-B252FX100010R30 | 10 | 3 | 10 | 16 | 9.7 | 4 |
| IMP12-B252FX120012R05 | 12 | 0.5 | 12 | 19 | 11.7 | 4 |
| IMP12-B252FX120012R10 | 12 | 1 | 12 | 19 | 11.7 | 4 |
| IMP12-B252FX120012R20 | 12 | 2 | 12 | 19 | 11.7 | 4 |
| IMP12-B252FX120012R30 | 12 | 3 | 12 | 19 | 11.7 | 4 |
| IMP16-B252FX160016R05 | 16 | 0.5 | 16 | 24 | 15.5 | 4 |
| IMP16-B252FX160016R10 | 16 | 1 | 16 | 24 | 15.5 | 4 |
| IMP16-B252FX160016R20 | 16 | 2 | 16 | 24 | 15.5 | 4 |
| IMP16-B252FX160016R30 | 16 | 3 | 16 | 24 | 15.5 | 4 |
| IMP20-B252FX200020R05 | 20 | 0.5 | 20 | 30 | 19.5 | 4 |
| IMP20-B252FX200020R10 | 20 | 1 | 20 | 30 | 19.5 | 4 |
| IMP20-B252FX200020R20 | 20 | 2 | 20 | 30 | 19.5 | 4 |
| IMP20-B252FX200020R30 | 20 | 3 | 20 | 30 | 19.5 | 4 |
| IMP25-B252FX250025R10 | 25 | 1 | 25 | 37.5 | 24.5 | 4 |
| IMP25-B252FX250025R20 | 25 | 2 | 25 | 37.5 | 24.5 | 4 |
| IMP25-B252FX250025R30 | 25 | 3 | 25 | 37.5 | 24.5 | 4 |
