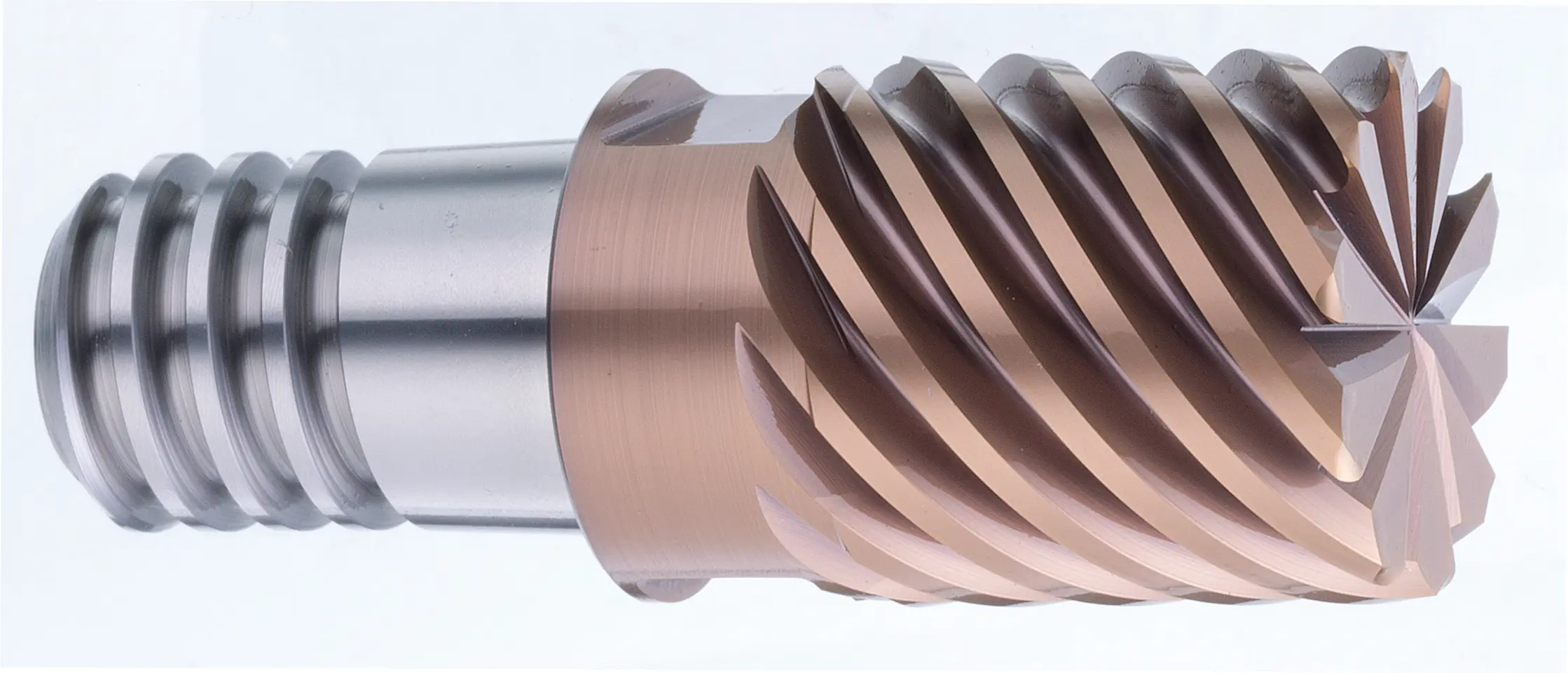

E140HX (EMH) Interchangeable Multi-Purpose End Mill Shanks
METRIC
ASIA
- Double-contact surface (taper and face)
- Solid carbide cutter head and body shank
- High accuracy, rigidity and efficiency in cutting
- High economy value with various interchangeable cutter heads
- Trapezoidal-designed thread reduces thread chipping
- Runout within 5μm
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR11 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | L | D1 | L1xD1 |
|---|---|---|---|---|
| h6 | mm | mm | mm | |
| EMH10U1007015 | 10 | 70 | 2.0 | 15x9.7 |
| EMH10U1009030 | 10 | 90 | 2.0 | 30x9.7 |
| EMH10S1011000 | 10 | 110 | 2.0 | |
| EMH12U1208018 | 12 | 80 | 2.5 | 18x11.7 |
| EMH12U1210036 | 12 | 100 | 2.5 | 36x11.7 |
| EMH12S1212000 | 12 | 120 | 2.5 | |
| EMH16U1609024 | 16 | 90 | 3.5 | 24x15.5 |
| EMH16U1612048 | 16 | 120 | 3.5 | 48x15.5 |
| EMH16S1615000 | 16 | 150 | 3.5 | |
| EMH20U2010030 | 20 | 100 | 5.0 | 30x19.5 |
| EMH20U2013060 | 20 | 130 | 5.0 | 60x19.5 |
| EMH20S2018000 | 20 | 180 | 5.0 | |
| EMH25U2511038 | 25 | 110 | 5.0 | 38x24.5 |
| EMH25U2516075 | 25 | 160 | 5.0 | 75x24.5 |
| EMH25S2521000 | 25 | 210 | 5.0 |
