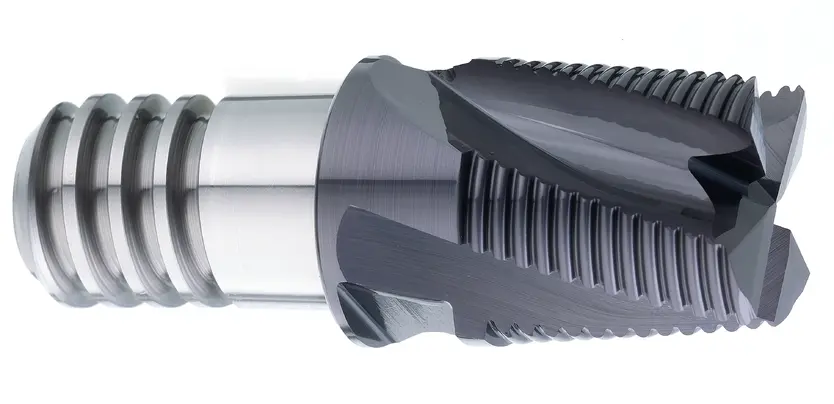

IMP..-F608FX Interchangeable Roughing End Mills
METRIC
ASIA
- Roughing End Mills – 4 Flutes
- Fine tooth staggered chip breaker design on cutting flutes are good for chip breaking.
- Application for roughing cutting process.
- Good wear resistance and lubricating effect with Nano multilayer coating.
Steel < 48HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | |||
|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron |
Product Specification
| Code No. | Dc | Lc | L1 | D1 | C | z |
|---|---|---|---|---|---|---|
| h10 | mm | mm | mm | mm | ||
| IMP10-F608FX100010 | 10 | 10 | 16 | 9.7 | 0.5 | 4 |
| IMP12-F608FX120012 | 12 | 12 | 19 | 11.7 | 0.5 | 4 |
| IMP16-F608FX160016 | 16 | 16 | 24 | 15.5 | 0.5 | 4 |
| IMP20-F608FX200020 | 20 | 20 | 30 | 19.5 | 0.5 | 4 |
| IMP25-F608FX250025 | 25 | 25 | 37.5 | 24.5 | 0.5 | 4 |
