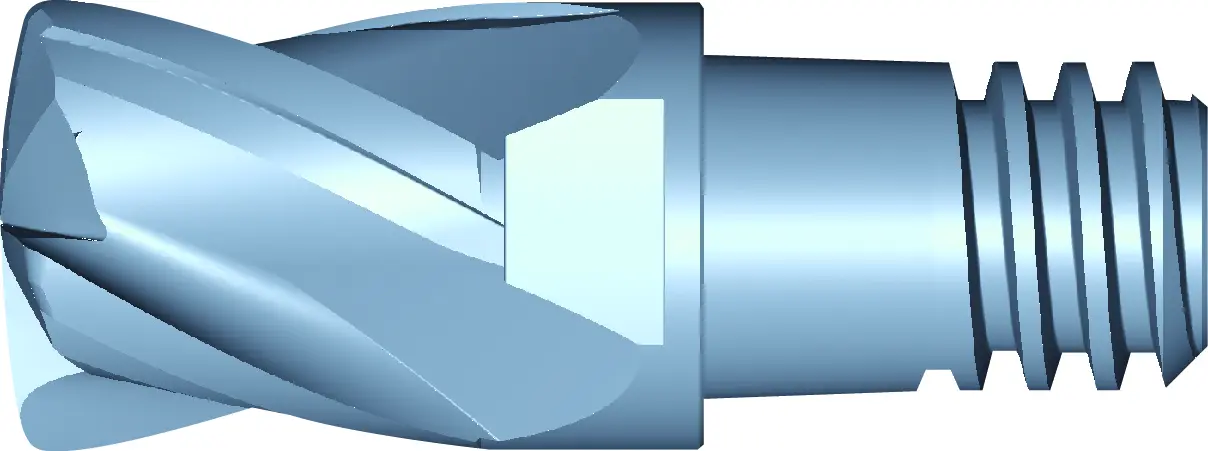

- Interchangeable Cirular Arc Finishing End Mills for Multi-Axis Machining
IMP..-Q139 / Q139FX / Q139SX Interchangeable Cirular Arc Finishing End Mills for Multi-Axis Machining
METRIC
ASIA
- 4 Flute Lens Form, Specially defined profile, reduce cycle time and improved surface finish.
- 4 Flute geometry specifically designed for finishing in stainless steel, high temperature alloys, and other ferrous materials.
- Bright w/o coating with sharp cutting edge for Aluminium.
- AlCrN coating for high hardness and best lubricating effect, for Steel, Stainless Steel etc.
- AlTiXZrN coating for high lubricating effect, antistick, for Nickle Alloys, High Tempreature Alloys, Stainless Steel and Titianium etc.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | S | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR11 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
Code No. | Dc | R | Lc | L1 | D1 |
---|---|---|---|---|---|
0-0.03 | mm | mm | mm | mm | |
IMP10-Q139100010R20 / IMP10-Q139FX100010R20 / IMP10-Q139SX100010R20 | 10 | 20 | 10 | 16 | 9.7 |
IMP12-Q139120012R24 / IMP12-Q139FX120012R24 / IMP12-Q139SX120012R24 | 12 | 24 | 12 | 19 | 11.7 |
IMP16-Q139160016R32 / IMP16-Q139FX160016R32 / IMP16-Q139SX160016R32 | 16 | 32 | 16 | 24 | 15.5 |
IMP20-Q139200020R40 / IMP20-Q139FX200020R40 / IMP20-Q139SX200020R40 | 20 | 40 | 20 | 30 | 19.5 |
