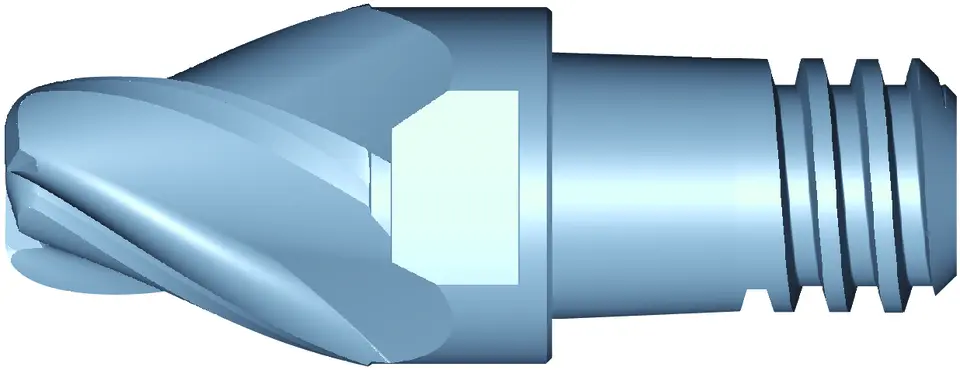

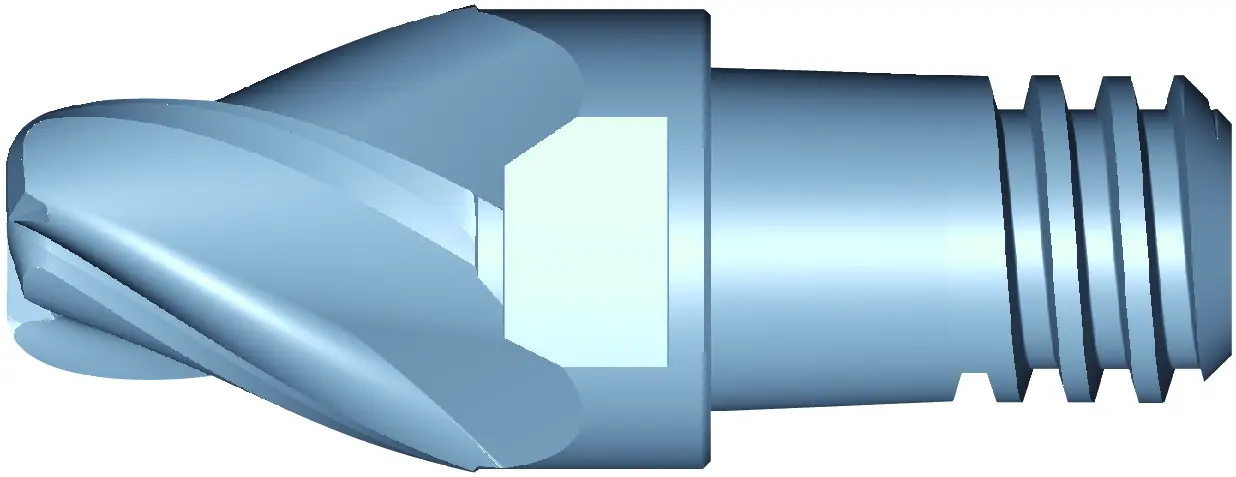

IMP..-Q138 / Q138FX / Q138SX 15° Interchangeable Cirular Arc Finishing End Mills for Multi-Axis Machining 15°
METRIC
ASIA
- Specially defined profile, reduce cycle time and improved surface finish.
- Taper form with three tangential radius, offered in a variety angles, provide maximun performance and optimal clearance angle for any workpiece.
- 4 Flute geometry specifically designed for semifinishing and finishing in stainless steel, high temperature alloys, and other ferrous materials.
- Bright w/o coating with sharp cutting edge for Aluminium.
Steel < 48HRC
P | H | M | K | N | S |
---|---|---|---|---|---|
Work Material
P | H | M | K | N | S | |||||
---|---|---|---|---|---|---|---|---|---|---|
GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR15 | GR16 | GR17 |
Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Titanium | Nickel | High Temp Alloys |
Product Specification
Code No. | Lc | L1 | D1 |
---|---|---|---|
mm | mm | mm | |
IMP10-Q138033005A15 / IMP10-Q138FX033005A15 / IMP10-Q138SX033005A15 | 10 | 16 | 9.7 |
IMP10-Q138067505A15 / IMP10-Q138FX067505A15 / IMP10-Q138SX067505A15 | 10 | 16 | 9.7 |
IMP12-Q138040006A15 / IMP12-Q138FX040006A15 / IMP12-Q138SX040006A15 | 12 | 19 | 11.7 |
IMP12-Q138090006A15 / IMP12-Q138FX090006A15 / IMP12-Q138SX090006A15 | 12 | 19 | 11.7 |
IMP16-Q138050008A15 / IMP16-Q138FX050008A15 / IMP16-Q138SX050008A15 | 16 | 24 | 15.5 |
IMP16-Q138112508A15 / IMP16-Q138FX112508A15 / IMP16-Q138SX112508A15 | 16 | 24 | 15.5 |
IMP20-Q138060010A15 / IMP20-Q138FX060010A15 / IMP20-Q138SX060010A15 | 20 | 30 | 19.5 |
IMP20-Q138135010A15 / IMP20-Q138FX135010A15 / IMP20-Q138SX135010A15 | 20 | 30 | 19.5 |
