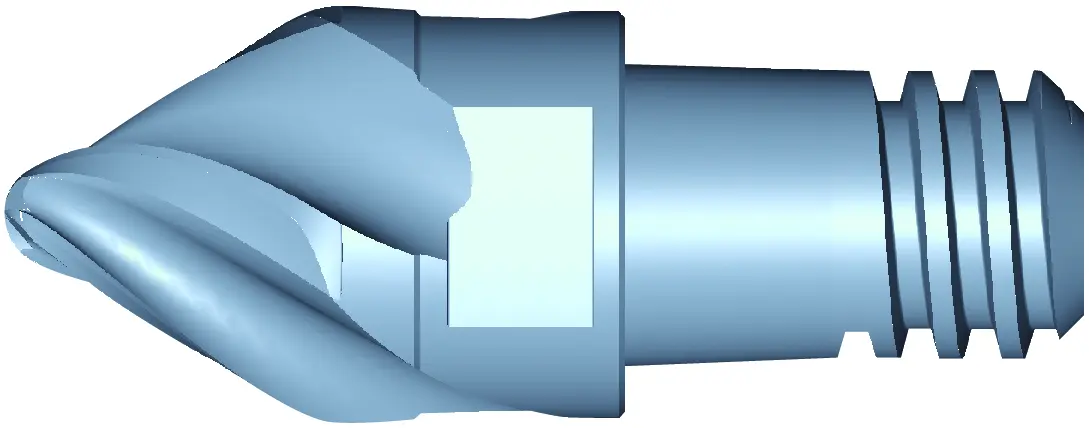

IMP..-Q138 / Q138FX / Q138SX 30° Interchangeable Cirular Arc Finishing End Mills for Multi-Axis Machining 30°

METRIC ASIA
  • Specially defined profile, reduce cycle time and improved surface finish.
  • Taper form with three tangential radius, offered in a variety angles, provide maximun performance and optimal clearance angle for any workpiece.
  • 4 Flute geometry specifically designed for semifinishing and finishing in stainless steel, high temperature alloys, and other ferrous materials.
  • Bright w/o coating with sharp cutting edge for Aluminium.
  • AlCrN coating for high hardness and best lubricating effect, for Steel, Stainless Steel etc.
  • AlTiXZrN coating for high lubricating effect, antistick, for Nickle Alloys, High Tempreature Alloys, Stainless Steel and Titianium etc.
  • MG carbide
  • 5
  • 1_1
  • uncoated bright
  • 螺旋角 2-2
  • 刀具刃數3-5
  • N 8 度
Inquiry Download
PREV NEXT

Steel < 48HRC

P H M K N S

Work Material

P H M K N S
GR1 GR2 GR3 GR4 GR5 GR8 GR9 GR10 GR15 GR16 GR17
Carbon Steel <24HRC Low-alloyed Steel <30HRC Hi-alloyed Steel 30~38HRC Hardened Steel 38~48HRC Hardened Steel Stainless Steel Cast Iron Aluminium Titanium Nickel High Temp Alloys

Product Specification

Product Filter
Lc
L1
Code No. Lc L1 D1
mm mm mm
IMP10-Q138033005A30 / IMP10-Q138FX033005A30 / IMP10-Q138SX033005A30 8.78 16 9.7
IMP10-Q138067505A30 / IMP10-Q138FX067505A30 / IMP10-Q138SX067505A30 8.78 16 9.7
IMP12-Q138040006A30 / IMP12-Q138FX040006A30 / IMP12-Q138SX040006A30 10.48 19 11.7
IMP12-Q138090006A30 / IMP12-Q138FX090006A30 / IMP12-Q138SX090006A30 10.48 19 11.7
IMP16-Q138050008A30 / IMP16-Q138FX050008A30 / IMP16-Q138SX050008A30 13.97 24 15.5
IMP16-Q138112508A30 / IMP16-Q138FX112508A30 / IMP16-Q138SX112508A30 13.97 24 15.5
IMP20-Q138060010A30 / IMP20-Q138FX060010A30 / IMP20-Q138SX060010A30 17.46 30 19.5
IMP20-Q138135010A30 / IMP20-Q138FX135010A30 / IMP20-Q138SX135010A30 17.46 30 19.5
