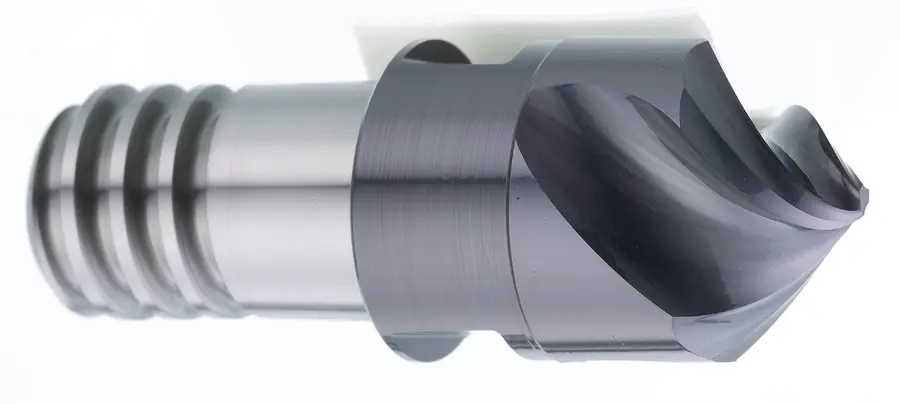

IMP..-E121FX Interchangeable End Mills For Chamfering
METRIC
ASIA
- End Mills for Chamfering - 3 Flutes
- With Helix cutting edge design, reduce vibration during cutting process.
- Sharp cutting edge could get better surface roughness and reduce burrs.
- Apply AlTiCrN coating type to enhance tool life and gain better cutting efficiency of cutting tools.
Steel < 52HRC
| P | H | M | K | N | S |
|---|---|---|---|---|---|
Work Material
| P | H | M | K | N | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GR1 | GR2 | GR3 | GR4 | GR5 | GR8 | GR9 | GR10 | GR11 | GR15 | GR16 | GR17 |
| Carbon Steel | <24HRC Low-alloyed Steel | <30HRC Hi-alloyed Steel | 30~38HRC Hardened Steel | 38~48HRC Hardened Steel | Stainless Steel | Cast Iron | Aluminium | Copper | Titanium | Nickel | High Temp Alloys |
Product Specification
| Code No. | Dc | Lc | d | L1 | D1 | z |
|---|---|---|---|---|---|---|
| 0-0.03 | mm | mm | mm | mm | ||
| IMP10-E121FX100004A090 | 10 | 4.5 | 1 | 16 | 9.7 | 3 |
| IMP12-E121FX120005A090 | 12 | 5.4 | 1.2 | 19 | 11.7 | 3 |
| IMP16-E121FX160007A090 | 16 | 7.2 | 1.4 | 24 | 15.5 | 3 |
| IMP20-E121FX200009A090 | 20 | 9 | 2 | 30 | 19.5 | 3 |
| IMP25-E121FX250011A090 | 25 | 11.5 | 2.5 | 37.5 | 24.5 | 3 |
